Key Factors Affecting Bottle Quality in PET Bottle Blowing Machine

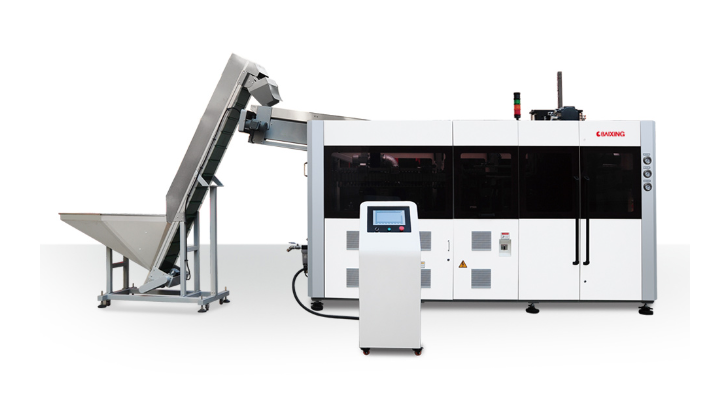

The PET bottle blowing machine is essential equipment in the modern packaging industry, used to manufacture water bottles, beverage bottles, edible oil containers, cosmetic bottles and chemical packaging. The quality of bottles made by a PET bottle blowing machine is influenced by a series of key process parameters. Controlling these factors effectively can reduce defective products, improve production efficiency, extend machine service life and ensure stable bottle performance. This article introduces the six most important factors that determine the molding quality of your PET bottle blowing machine.
Preform Quality in PET Bottle Blowing Machine
Preform is the foundation of stable production for any PET bottle blowing machine. It is formed by injecting PET pellets into a specific shape. To ensure good blowing results, the recycled material ratio should not exceed 10%, and the number of recycling times cannot be more than two. After injection, preforms must cool for at least 48 hours before use, and their storage time should not exceed six months. Mixing preforms of different production batches is not recommended, as differences in material, residual stress and composition will directly affect the stability of the PET bottle blowing machine and cause uneven wall thickness, stress cracks or inconsistent bottle weight.
Heating Control for PET Bottle Blowing Machine
Heating is one of the most critical steps for a PET bottle blowing machine. The heating oven provides even temperature distribution to ensure stable stretching and blowing. Proper oven height, power output and regional temperature settings directly determine molding effect. The ideal ambient temperature for production is about 22℃. If temperature is too high, condensation may occur; if too low, material performance becomes unstable. Incorrect heating often causes top-heavy or bottom-heavy bottles, over-sized necks, hard necks and other defects, reducing the qualified rate of the PET bottle blowing machine.
Pre-blow System in PET Bottle Blowing Machine
The pre-blow system supports initial shaping and longitudinal stretching in the PET bottle blowing machine.
Pre-blow Position in PET Bottle Blowing Machine
An improper pre-blow position leads to off-center bottom, thin base, white marks, unbalanced weight and even bottom penetration.
Pre-blow Pressure & Flow for PET Bottle Blowing Machine
Standard pressure ranges from 0.8 to 1 MPa, and proper flow ensures uniform stretching. Wrong parameters often cause bottle bursting or leakage, affecting the performance of the PET bottle blowing machine.
Stretch Rod of PET Bottle Blowing Machine
The stretch rod works with pre-blow to stretch heated preforms vertically in the PET bottle blowing machine. The standard driving pressure is 0.55–0.8 MPa, and the gap between the rod and bottom mold should be 2.3–2.5 mm. An overly large gap causes center offset, while an overly small gap thins the bottom center, both affecting bottle quality produced by the PET bottle blowing machine.
High-pressure Blowing in PET Bottle Blowing Machine
High-pressure blowing finalizes the bottle shape in the PET bottle blowing machine. The standard pressure is 3.7–4 MPa, suitable for carbonated drinks and daily containers. Proper pressure and holding time ensure stable capacity and strength. Insufficient pressure leads to incomplete molding, weak bottle body and unqualified appearance, reducing the efficiency of the PET bottle blowing machine.
Mold Control for PET Bottle Blowing Machine
The mold is vital to ensure dimensional stability for the PET bottle blowing machine. It must be kept clean, with smooth vents and stable temperature. PET shrinkage is about 1.8%, so temperature control is critical. Bottle body temperature is best at 20–45℃, and bottom temperature at 6–15℃. Poor mold control causes tilted neck, volume change and heavy bottom, affecting product consistency from the PET bottle blowing machine.
Conclusion
All factors work together to determine the quality of bottles made by a PET bottle blowing machine. By optimizing preform quality, heating, pre-blow, stretch rod, high-pressure blowing and mold conditions, you can achieve stable, efficient and high-yield production. A well-tuned PET bottle blowing machine brings consistent quality, lower cost and stronger competitiveness to your packaging business.
