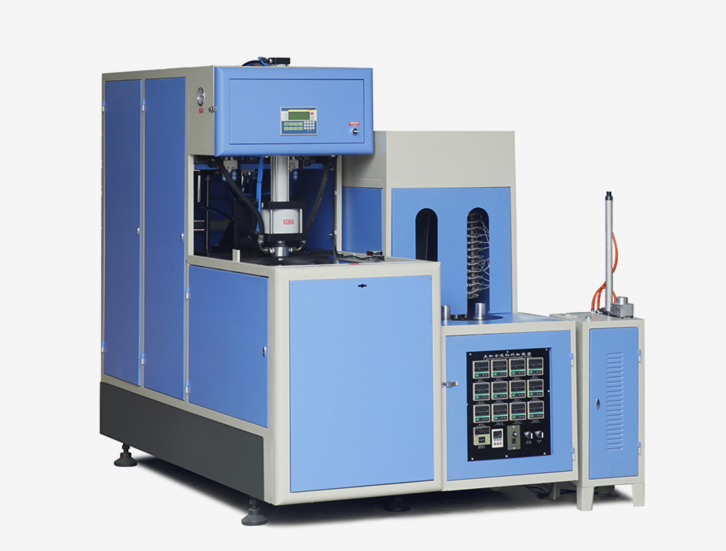

Operation Panel Settings for Semi-Automatic Bottle Blowing Machine 10L Water Bottle
Operation panel settings for semi-automatic bottle blowing machine 10L water bottle are critical for the production of large-capacity 10L water bottles in the drinking water packaging industry, which requires extremely high precision on equipment parameters. The semi‑automatic bottle blowing machine has become the preferred choice for small and medium‑batch production due to flexible adjustment and low cost. Correct operation panel settings for semi‑automatic bottle blowing machine 10L water bottle are the key to ensuring uniform wall thickness, no deformation, qualified sealing, and stable high‑efficiency production. This article explains the complete operation panel settings for semi‑automatic bottle blowing machine 10L water bottle from four aspects: preparation, core parameter setup, trial adjustment, and safety precautions.
Preparation & Basic Panel Operation for 10L Water Bottle Production
Before startup, complete equipment inspection as part of standard operation panel settings for semi‑automatic bottle blowing machine 10L water bottle. Install a dedicated 10L mold and fasten locking bolts; check that the high‑pressure air compressor maintains 3.0–3.5MPa, cooling water circulation works normally, and water temperature is 10–15°C. Turn on power and enter the standby screen.
Master core buttons for operation panel settings for semi‑automatic bottle blowing machine 10L water bottle:
• SET: enter parameter mode
• Arrow keys: switch items
• Numeric keys: input values
• ENTER: save
• EXIT: return
Switch to manual mode, test stretch rod, mold movement, and blowing valves. Ensure smooth action before formal operation panel settings for semi‑automatic bottle blowing machine 10L water bottle.
Core Parameter Setup in Operation Panel Settings for Semi-Automatic Bottle Blowing Machine 10L Water Bottle
The 10L bottle has a large volume and thick wall, so parameters must be specially configured. The following are standard values for operation panel settings for semi‑automatic bottle blowing machine 10L water bottle.
Heating Parameters in Operation Panel Settings for Semi-Automatic Bottle Blowing Machine 10L Water Bottle
Heating is critical for uniform preform softening. For operation panel settings for semi‑automatic bottle blowing machine 10L water bottle:
• Preheating zone: 100–120°C
• Main heating zone: 220–240°C
• Heating time: 120–150 seconds
These settings ensure full heat penetration for thick 10L preforms. Save and start heating before production.
Time Parameters in Operation Panel Settings for Semi-Automatic Bottle Blowing Machine 10L Water Bottle
Time sequence directly affects forming stability. Set these values in operation panel settings for semi‑automatic bottle blowing machine 10L water bottle:
• Stretch down time (T9): 0.7–0.9s
• Sealing time (T11): 0.6–0.9s
• Primary blowing time (T50/T51): 0.2–0.3s
• Secondary blowing time (T52/T53): 0.4–0.5s
• Exhaust time (T10): 1.8–2.0s
Accurate time settings are essential in operation panel settings for semi‑automatic bottle blowing machine 10L water bottle.
Pressure Parameters in Operation Panel Settings for Semi-Automatic Bottle Blowing Machine 10L Water Bottle
Stable high pressure ensures full forming. Set pressure in operation panel settings for semi‑automatic bottle blowing machine 10L water bottle:
• High blowing pressure: 3.0–3.5MPa
• Low auxiliary pressure: 0.6–0.8MPa
• Boost delay (T5): 0.2–0.3s
Match pressure and time to avoid uneven wall thickness in operation panel settings for semi‑automatic bottle blowing machine 10L water bottle.
Trial Blowing & Optimization for Operation Panel Settings for Semi-Automatic Bottle Blowing Machine 10L Water Bottle
After finishing operation panel settings for semi‑automatic bottle blowing machine 10L water bottle, switch to semi‑automatic mode and run a single trial.
Check for:
• Bubbles, dents, wrinkles
• Wall thickness uniformity (error ≤ 0.2mm)
• Mouth deformation
• Bottom cracks
Adjust operation panel settings for semi‑automatic bottle blowing machine 10L water bottle accordingly:
• Thin bottom: increase secondary blowing time 0.1–0.2s
• Mouth deformation: raise sealing pressure or time
• Wrinkles: increase heating temperature 5–10°C or time 10s
Repeat 2–3 times until qualified, then lock all parameters of operation panel settings for semi‑automatic bottle blowing machine 10L water bottle.
Operating Notes for Operation Panel Settings for Semi-Automatic Bottle Blowing Machine 10L Water Bottle
During production, monitor operation panel settings for semi‑automatic bottle blowing machine 10L water bottle in real time. Check 1–2 bottles per hour.
Do NOT change parameters during running. Stop immediately if heating fails. After production, turn off heating, cool below 80°C, then power off. Save operation panel settings for semi‑automatic bottle blowing machine 10L water bottle for future use.
Conclusion
Correct operation panel settings for semi‑automatic bottle blowing machine 10L water bottle directly determine product quality and efficiency. Proper heating, time, and pressure configuration ensure stable, high‑quality 10L water bottle production.
