PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine: Full Guide for Factories With Preform Injection Equipment

PET bottle blowing machine matching PET preform injection molding machine is the ideal two-step production solution for factories that already produce PET preforms but want to independently manufacture finished mineral water bottles. Numerous plastic packaging factories and mineral water manufacturers have purchased PET preform injection molding machine to stably produce various specifications of PET preforms. However, long-term outsourcing of finished PET bottles brings many troubles: high procurement cost, unstable delivery cycle, limited customized bottle shapes and heavy loss during transportation. If you already own a PET preform injection molding machine, you only need to add a complete set of supporting blow molding system to build a two-step integrated production line combining injection molding and PET bottle blowing machine. This solution realizes full independent production from raw PET pellets to finished mineral water bottles, beverage bottles and daily chemical bottles. This article elaborates the complete implementation plan from capacity matching, PET bottle blowing machine model selection, auxiliary equipment configuration, workshop layout, process coordination, cost control and daily operation maintenance, which is suitable for domestic packaging factories and African water plants to expand production.

Capacity Matching for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Calculate Daily Output to Match PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Capacity matching is the primary work before purchasing PET bottle blowing machine matching PET preform injection molding machine, to avoid mismatch between injection line and blow molding line, resulting in accumulated preforms or idle blow molding equipment. First, calculate the daily preform output of your injection molding machine: high-speed PET preform injection molding machine with 24-cavity or 48-cavity mold can produce hundreds of thousands of preforms per day; small 8-cavity or 16-cavity injection molding machine usually produces less than 100,000 preforms daily.

Select Appropriate Model of PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Choose the matching PET bottle blowing machine matching PET preform injection molding machine based on daily preform yield:

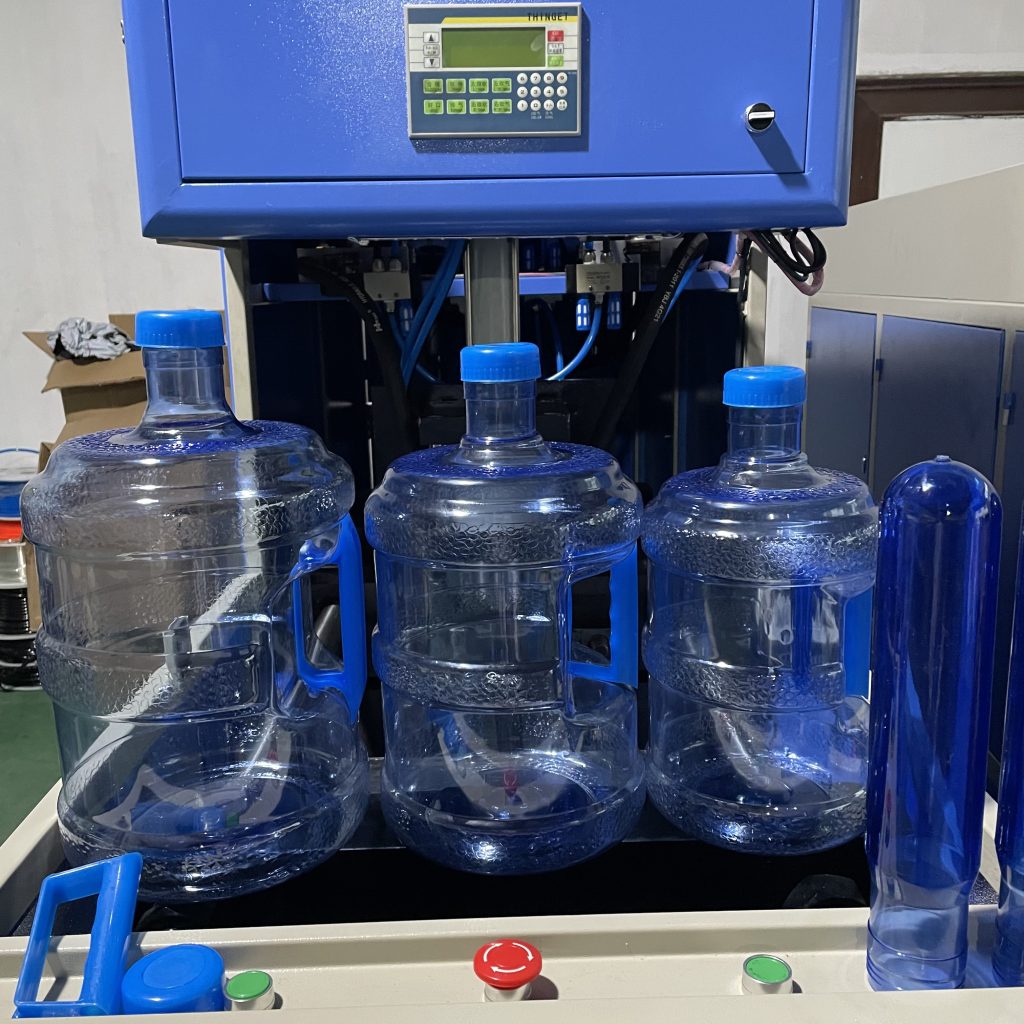

Factories with daily output below 100,000 preforms: Prioritize semi-automatic 1-cavity or 2-cavity blow molding machine, low investment and flexible labor, suitable for small-batch multi-spec orders.

Medium-sized water plants with daily output 100,000–300,000: Adopt fully automatic 2–4 cavity servo blow molding machine, equipped with automatic preform feeding machine, only 1–2 operators are required for supervision.

Large-scale production lines with daily output over 300,000: Purchase 4–8 cavity high-speed rotary fully automatic blow molding machine, which can be connected with injection molding conveyor for seamless online production.

It is critical to note the cooling interval between injection molding and blow molding. Fresh hot preforms coming out from PET preform injection molding machine need to be cooled for more than 24 hours to release internal stress; otherwise, the PET bottle blowing machine matching PET preform injection molding machine will generate mass defective bottles such as whitening, bottle cracking and uneven wall thickness during blow molding. The workshop needs to reserve an independent preform storage area with ventilation and moisture-proof facilities, and supporting drying equipment to control preform moisture content, which is the basic premise to guarantee high yield rate of finished bottles.

Auxiliary Equipment Configuration for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Main Host Unit of PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

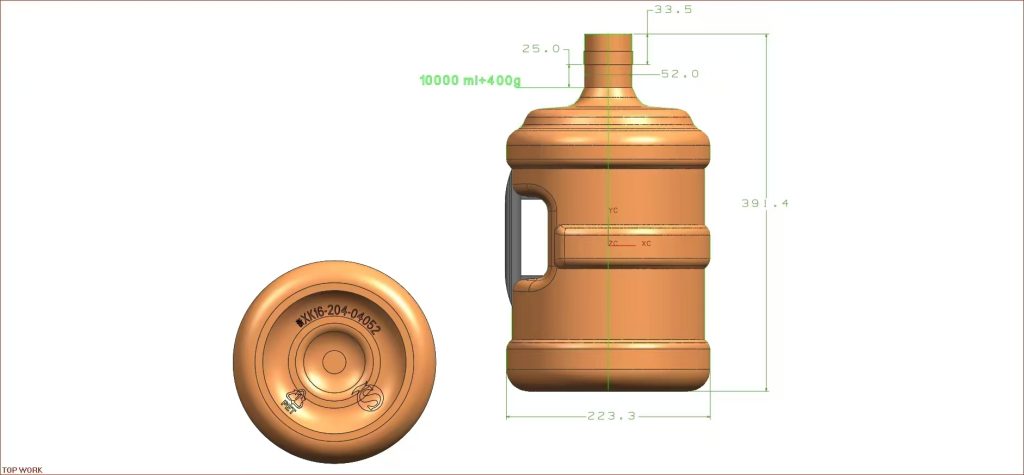

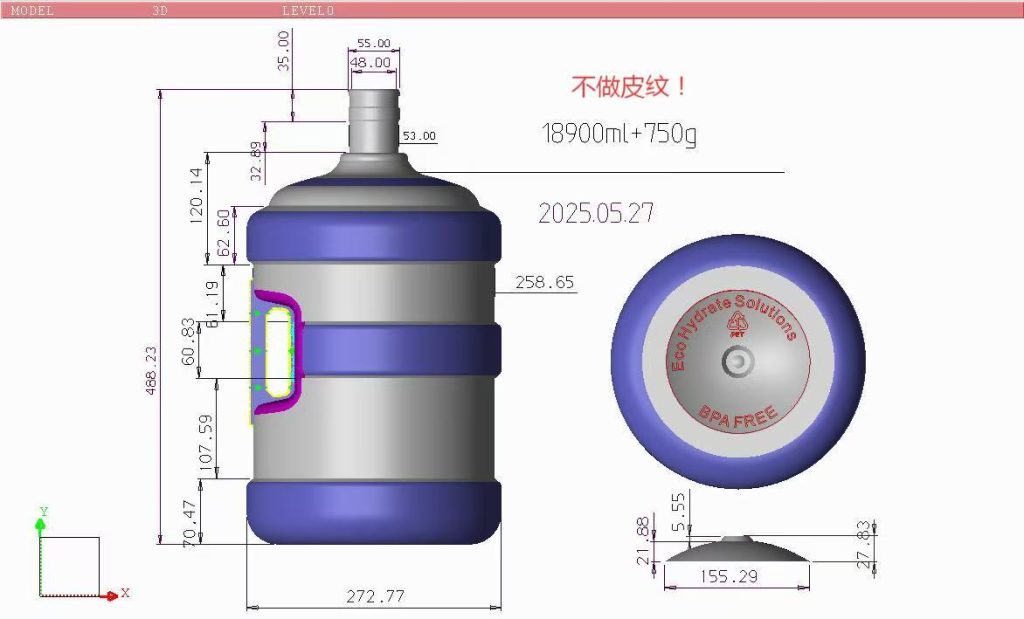

It includes infrared zoned heating oven, stretch blow molding mold, servo mold clamping mechanism and PLC intelligent control system. The oven must support independent low-temperature control for bottle neck to prevent thread deformation that cannot match filling caps. Customize molds according to your main bottle types (500ml, 1L, 1.5L mineral water bottles), adopt 7075 aluminum alloy material with fast heat conduction and uniform cooling, not easy to rust and wear after long-term running on PET bottle blowing machine matching PET preform injection molding machine.

High-Pressure Air Supply System for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

PET blow molding requires low pre-blow pressure 0.8–1.0MPa and high forming pressure 2.8–3.5MPa. Ordinary air compressors cannot supply stable pressure, and air mixed with water and oil will cause batch defects on blow molding equipment. You must equip screw air compressor, air storage tank, three-stage precision oil-water filter and refrigerated air dryer. Drain accumulated water of air storage tank every shift; high temperature & humid factories in Africa need extra pipeline water separators to avoid condensed water entering molds and causing water marks & mold rust, which will damage the finished bottles produced by PET bottle blowing machine matching PET preform injection molding machine.

Constant Temperature Cooling System for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Stable cooling water temperature 8–12℃ can ensure rapid shaping without shrinkage deformation of bottles. Configure industrial chiller, install sediment filter at water inlet. If factory water contains excessive impurities and scale, clean mold water channels with special descaling agent every month to prevent pipeline blockage and reduce cooling efficiency of PET bottle blowing machine matching PET preform injection molding machine.

Automatic Auxiliary Feeding Equipment for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Production lines with medium and above capacity are recommended to install automatic preform sorting machine and feeding conveyor to save manual preform placement. Equipped with bottle outlet conveyor and collecting platform at finished product end to reduce appearance scratches caused by manual handling of bottles produced by PET bottle blowing machine matching PET preform injection molding machine.

Optimize Workshop Layout for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

No large-scale reconstruction is required for existing injection molding workshop; only divide an independent blow molding area for blow molding equipment, follow the one-way material flow: raw PET pellets → injection molding machine → preform cooling storage → preform sorting & feeding → heating & blow molding → finished bottle stacking, to avoid cross confusion of personnel and materials for PET bottle blowing machine matching PET preform injection molding machine.

Small factories can adopt separated layout: PET preform injection molding machine works in independent area, cooled preforms are transported to adjacent blow molding workshop with blow molding host. Medium & large factories choose online connection layout, conveyor of injection molding machine connects preform sorting machine, cooled preforms directly send to oven of PET bottle blowing machine matching PET preform injection molding machine, full automatic circulation reduces manual transfer cost and preform scratch loss.

Reserve placement space for auxiliary machines at the same time: air compressor and chiller should be far away from high-temperature oven, electric control cabinet avoid direct sunlight and install cooling fans to prevent frequent electrical component failure caused by high temperature. The whole workshop shall be isolated from dust, install dust-proof curtains at inlet and outlet of oven, as dust attached on preforms will form permanent black spot defects after heating on PET bottle blowing machine matching PET preform injection molding machine.

Unify Process Standard for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

The quality of PET preforms directly determines the yield rate of finished bottles on blow molding equipment, so process parameters of two procedures must be controlled uniformly for PET bottle blowing machine matching PET preform injection molding machine.

In injection molding process: Dry PET raw materials 4–6 hours in advance, control moisture content below 0.04%, ensure uniform preform wall thickness and standard bottle neck thread, forbid defective preforms with uneven thickness, wire drawing gate and deformed neck from flowing into blow molding station.

In blow molding process: Adjust oven zoned temperature according to preform weight and storage time, keep bottle body heating temperature 105–110℃ and low heat preservation for bottle neck; synchronously match stretch rod speed, pre-blow and high-pressure air blowing time to eliminate bottle bottom cracking, shoulder dent and ultra-thin local wall thickness on PET bottle blowing machine matching PET preform injection molding machine.

Arrange technicians to uniformly control parameters of two equipment, forbid operators to adjust temperature and speed arbitrarily. Establish preform sampling inspection and finished bottle thickness testing process, conduct small batch trial blow before mass production, and start full-load operation only after stable yield rate of blow molding equipment.

Cost & Benefit Analysis of Adding PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Building integrated production line with existing PET preform injection molding machine and new blow molding host brings remarkable long-term economic benefits. Outsourcing finished bottles includes preform processing fee, blow molding processing fee, logistics freight and middleman profit. Integrated self-production can cut 15%–30% of comprehensive single bottle cost by adopting PET bottle blowing machine matching PET preform injection molding machine. Meanwhile, you can customize bottle shape and logo groove for clients without waiting mold opening of outsourcing manufacturers, order delivery cycle is shortened by half.

Input costs include one-time equipment purchase, mold customization, workshop renovation and wearing parts stock; operation costs are mainly electricity, small labor and equipment maintenance. The full set of semi-automatic blow molding machine has controllable investment, and the extra input can be recovered within 3–8 months after stable capacity. Compared with continuous bottle outsourcing, long-term production gains larger profit margin, and you can expand external processing business of preforms and finished bottles simultaneously to broaden revenue channels with PET bottle blowing machine matching PET preform injection molding machine.

Standard Maintenance System for PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

Standardize maintenance management for dual production lines to reduce shutdown loss of injection molding machine and blow molding equipment. Drain accumulated water of air compressor and chiller pipelines before startup every day, inspect oven heating tubes and stretch rods of blow molding machine; fasten circuit terminals and clean filter cartridges every week; dredge mold water channels and lubricate transmission components every month. Stock sufficient wearing parts such as heating tubes, sealing rings, stretch rods and contactors to avoid full-line shutdown caused by spare parts shortage when running PET bottle blowing machine matching PET preform injection molding machine.

For African overseas clients with weak operation skills of local workers, simplify maintenance operation flow, provide graphic operation manuals, and arrange equipment manufacturer on-site training to ensure workers master basic debugging and fault handling methods of both injection molding machine and PET bottle blowing machine matching PET preform injection molding machine.

Conclusion: Advantages of PET Bottle Blowing Machine Matching PET Preform Injection Molding Machine

If you already own PET preform injection molding machine and plan to produce finished PET bottles, the optimal solution is to build two-step integrated PET production line matched with blow molding equipment, namely PET bottle blowing machine matching PET preform injection molding machine. The core operation logic is: match blow molding machine model according to injection molding capacity, complete full set of air and cooling auxiliary equipment, design scientific workshop material flow layout, unify upstream and downstream process standards, and implement standardized daily maintenance to control failure rate. This scheme is suitable for small and medium beverage & packaging factories in domestic market and African mineral water plants to upgrade full-process production line at low cost, completely get rid of cost and delivery restrictions of outsourcing bottles, realize independent whole production from PET raw material to finished bottle, and improve market competitiveness and long-term profit space by using PET bottle blowing machine matching PET preform injection molding machine.
