Common Problems of 500ml PET Water Bottle in Blowing Process & Solutions
The 500ml PET water bottle is the most widely used packaging product in the global drinking water industry. Due to its thin wall, small size and high transparency requirement, many manufacturers often face various common problems of 500ml PET water bottle in blowing process. Even small deviations in temperature, air pressure or operation will lead to defects such as deformation, uneven thickness, white spots and bottom wrinkles. Understanding these common problems of 500ml PET water bottle in blowing process and mastering effective solutions can help factories reduce reject rate, stabilize production and improve product competitiveness. This article summarizes the most frequent defects, real causes and practical solutions for 500ml PET bottles in actual blowing production.
Mouth Deformation – Common Problems of 500ml PET Water Bottle in Blowing Process
Main Causes
• Upper heating temperature is too high, causing preform neck softening.
• Preform placement is not centered or fixture is loose.
• Stretch rod is not vertical, leading to offset during stretching.
Solutions
• Lower the temperature of the upper heating zone to protect the preform neck.
• Calibrate the preform holder to ensure accurate positioning.
• Adjust the verticality of the stretch rod and check regularly.
• Use a blowing machine with neck cooling protection to avoid overheating.
Uneven Wall Thickness – Common Problems of 500ml PET Water Bottle in Blowing Process
Uneven wall thickness is another frequent common problems of 500ml PET water bottle in blowing process. The bottle body shows one side thin and one side thick, which reduces strength and affects appearance. This defect mostly occurs during high-speed mass production.
Main Causes
• Uneven heating in the oven or slow preform rotation speed.
• Unstable blowing pressure or unbalanced air distribution.
• Mold exhaust holes are blocked, affecting material flow.
Solutions
• Balance the temperature of each heating zone and increase preform rotation speed.
• Keep air compressor pressure stable and check air circuit regularly.
• Clean mold exhaust holes to ensure smooth forming.
White Fog & White Spots – Common Problems of 500ml PET Water Bottle in Blowing Process
White fog, crystal spots and atomized marks seriously damage transparency and belong to typical common problems of 500ml PET water bottle in blowing process. These defects make products fail to meet market appearance standards.
Main Causes
• Excessively high heating temperature causes PET crystallization.
• PET preforms are affected with damp or stored in poor conditions.
• Compressed air contains water, oil or impurities.
Solutions
• Reduce heating temperature properly to avoid overheating.
• Store preforms in dry and ventilated warehouses.
• Install air dryer and filter to keep blowing air clean.
Bottom Wrinkles & Cracks – Common Problems of 500ml PET Water Bottle in Blowing Process
Bottom wrinkles, incomplete forming and micro cracks are very common common problems of 500ml PET water bottle in blowing process, which may cause water leakage and affect product safety.
Main Causes
• Insufficient stretching stroke or low blowing pressure.
• Mold temperature is too low or cooling system is abnormal.
• Blocked bottom exhaust groove leads to poor material extension.
Solutions
• Increase stretching stroke and secondary blowing pressure.
• Use industrial chiller to stabilize mold temperature.
• Clean exhaust grooves regularly for smooth air flow.
Soft Bottle Body – Common Problems of 500ml PET Water Bottle in Blowing Process
Soft and easily deformed bottle body is also one of the common problems of 500ml PET water bottle in blowing process, especially for small and new factories without standard debugging experience.
Main Causes
• Insufficient cooling time in the mold.
• High workshop temperature affects final shaping.
• Low blowing pressure leads to incomplete stretching.
Solutions
• Extend mold cooling time properly.
• Use chiller to keep stable cooling circulation.
• Increase blowing pressure to ensure full bottle shaping.
Summary & Professional Suggestions
Most common problems of 500ml PET water bottle in blowing process are caused by unreasonable temperature, unstable air pressure, unqualified preforms and poor mold precision. To solve these problems fundamentally, manufacturers need not only standard operation and debugging, but also stable and high-performance blowing equipment.

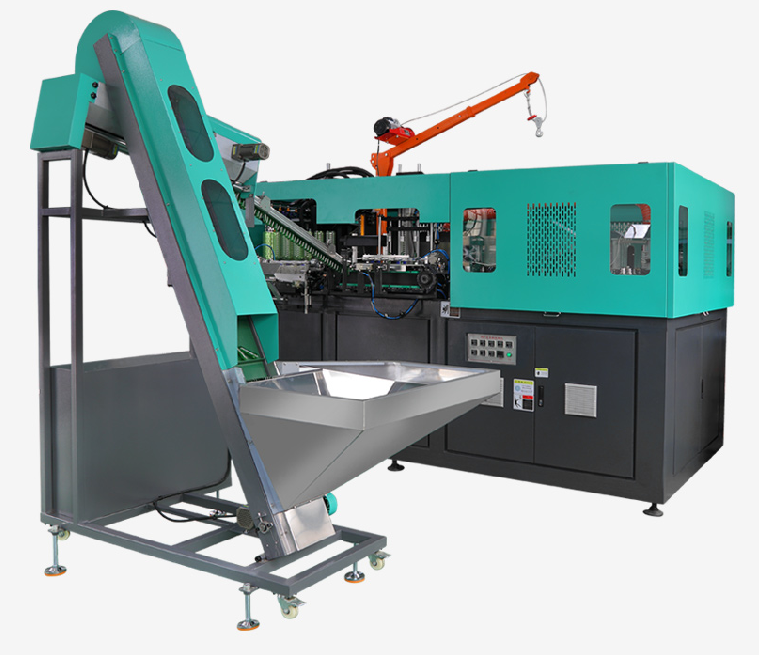

At https://www.bottleblowingmachine.com/, we provide professional semi-automatic and fully automatic PET bottle blowing machines optimized for 500ml water bottles. Our machines feature precise temperature control, stable stretching system, low failure rate and high finished product rate, which can effectively avoid all common problems of 500ml PET water bottle in blowing process. We offer free factory layout, machine installation, worker training and long-term after-sales support. If you want to reduce defects and improve production efficiency, contact us today for a free quotation and customized solution.
