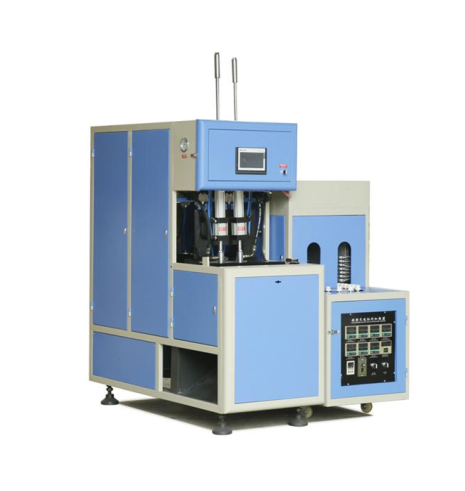

HQ-1000B 1.5L Semi-Automatic High-Compatibility Bottle Blowing Machine (1-Cavity-2)
Our semi automatic high compatibility bottle blowing machine HQ-1000B 1 cavity 2 is a professional blow molding equipment with high compatibility for multiple bottle types and 1-cavity-2 efficient production structure.HQ-1000B 1-cavity-2 semi-automatic high-compatibility bottle blowing machine is a professional blow molding equipment independently developed for small and medium-sized beverage, chemical, pharmaceutical and liquor packaging enterprises. The machine is designed for producing various plastic bottles within 1.5L, with a stable output of 1000 bottles per hour, which perfectly balances production efficiency and equipment cost, and is the first choice for small and medium-sized production lines.
Our semi automatic high compatibility bottle blowing machine HQ-1000B 1 cavity 2 supports quick mold change within 30 minutes, enabling flexible production of multiple bottle types with its 1-cavity-2 structure.
Core Features
The semi automatic high compatibility bottle blowing machine HQ-1000B 1 cavity 2 is equipped with an adjustable mold base, which can adapt to different bottle shapes and sizes without replacing the whole mold.As a semi-automatic Bottle Blowing Machine focusing on 1.5L small-capacity products, the HQ-1000B combines practical production needs with advanced technical design. Its core features focus on automation convenience, operation simplicity and production flexibility, effectively solving the pain points of labor cost and narrow application range in small and medium-sized enterprises’ production, and realizing the balance of high efficiency and low investment.Compared with single-cavity models, our semi automatic high compatibility bottle blowing machine HQ-1000B 1 cavity 2 doubles production capacity while maintaining high compatibility, making it ideal for small-batch multi-specification production.
1-Cavity-2 High-Efficiency Forming with 1000BPH Stable Output
The HQ-1000B adopts a 1-cavity forming structure optimized for small-capacity bottles, achieving a stable output of 1000 bottles per hour for 1.5L products. The precise mold clamping and automatic ejection system ensures continuous production without manual intervention in finished product collection, which is efficient and reliable for small and medium batches of production. The 1-cavity design avoids mutual interference during forming, ensuring uniform wall thickness and high forming qualification rate of finished bottles.
Automatic Ejection System for Labor Saving & Hygiene
Equipped with an intelligent automatic ejection system, the HQ-1000B realizes automatic collection of finished bottles after mold opening, eliminating the need for manual picking. This design not only saves 1 labor cost per shift but also avoids production delays caused by manual operation, greatly improving overall production efficiency. It also reduces secondary contamination of products caused by manual contact, ensuring the hygiene and safety of food, beverage and pharmaceutical products, which meets international packaging hygiene standards.
PLC HMI Control System for Intelligent & Simple Operation
Adopting a computer PLC system with HMI (Human-Machine Interface) control, the HQ-1000B realizes intelligent operation of the whole production process. The user-friendly touch screen interface allows operators to easily set and adjust process parameters such as temperature, blowing pressure and stretch speed. It also supports real-time monitoring of equipment operation status and fault alarm, enabling ordinary workers to master the operation skills after simple training, without the need for professional technical personnel. The system can store multiple sets of process parameters for different bottle types, which can be directly called when switching production.
Low Energy Consumption & Compact Small Footprint
Optimized through energy-saving structural design and efficient component configuration, the HQ-1000B achieves lower energy consumption while ensuring high output. Compared with similar products, its energy consumption is reduced by 15%-20%, effectively saving long-term operation costs for enterprises. At the same time, the machine adopts a compact structural design with a small footprint, which can make full use of workshop space and is suitable for small and medium-sized factories with limited production area.

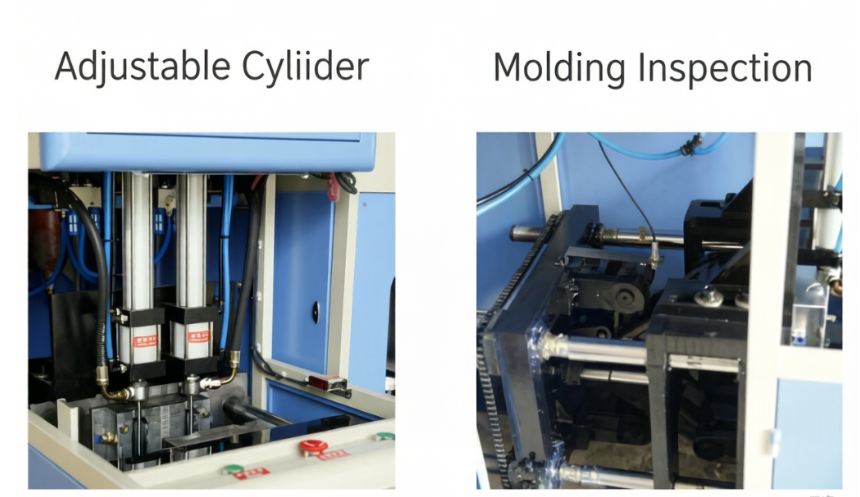

Adjustable Stretch Cylinder for Wide Compatibility
The HQ-1000B is equipped with an adjustable stretch cylinder, which can flexibly adjust the stretch length according to different bottle shapes and capacities (≤1.5L). This design greatly expands the compatibility range of the machine, enabling it to produce not only regular bottles such as oil bottles, soda bottles and mineral water bottles but also special-shaped containers with different heights and calibers. It realizes “one machine for multiple purposes” and effectively reduces the equipment investment cost of enterprises.
Technical Parameters
The following detailed technical parameters of the HQ-1000B 1.5L semi-automatic bottle blowing machine cover output, capacity range, control system, structural design and other core indicators. The structured presentation helps you quickly judge whether it matches your production line configuration and actual demand, providing a professional reference for purchase decisions.
All core components of the semi automatic high compatibility bottle blowing machine HQ-1000B 1 cavity 2 are made of high-quality materials, ensuring stable operation of the high compatibility system and 1-cavity-2 structure.
| Category | Item | Specification |
| Output | – | 1000 PCS/H (1.5L bottle, 1-cavity) |
| Product Capacity | Capacity Range | ≤1.5L (custom available for small capacity) |
| Applicable Containers | Plastic bottles, medicine bottles, chemical reagent bottles, etc. | |
| Control System | Type | PLC with HMI (Human-Machine Interface) |
| Core Function | – | Automatic bottle ejection after mold opening |
| Cavity Number | – | 1-Cavity |
| Key Component | – | Adjustable stretch cylinder |
| Core Advantages | – | High efficiency, low energy consumption, wide compatibility |
| Power Supply | Voltage | 380V/3P/50HZ (custom 220V available for global use) |
| Rated Power | 22 kW (reference industry benchmark) | |
| Applicable Materials | – | PET (main), PP (custom available) |
| Air Source | Working Pressure | 0.7-0.9 Mpa |
| Blowing Pressure | 2.0-2.8 Mpa | |
| Dimensions & Weight | Main Unit (approx.) | 2300×1300×1600 mm / 2.1 T |
| Temperature Adjustment Range | – | 15-110 ℃ (for PET materials) |
Application Scenarios
With 1.5L wide capacity compatibility and adjustable stretch cylinder technology, the HQ-1000B is widely used in food and beverage, edible oil, daily chemical, pharmaceutical and chemical industries. It can adapt to the production of regular plastic bottles and special-shaped containers, effectively meeting the diversified packaging needs of different industries and improving production flexibility.Whether you produce 2L beverage bottles, cosmetic bottles or daily chemical bottles, the semi automatic high compatibility bottle blowing machine HQ-1000B 1 cavity 2 can meet your production needs with its quick mold change and high compatibility.
After-Sales Service
We provide comprehensive after-sales support for the HQ-1000B semi-automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of the production line.
We provide free on-site installation and operator training for the semi automatic high compatibility bottle blowing machine HQ-1000B 1 cavity 2, and offer a 1-year warranty for core components.
FAQ About HQ-1000B 1.5L Semi-Automatic Bottle Blowing Machine
Q：What is the production efficiency of the HQ-1000B for small-capacity bottles below 1.5L?
A：The HQ-1000B has a stable output of 1000 bottles per hour for 1.5L bottles. For smaller capacity bottles (such as 500ml or 1L), the production efficiency can be appropriately improved, which is suitable for mass production of small-capacity packaging.
Q：How does the adjustable stretch cylinder of the HQ-1000B expand compatibility?
A：The adjustable stretch cylinder can flexibly adjust the stretch length according to different bottle shapes and capacities. It supports the production of regular bottles with different heights and special-shaped containers, realizing “one machine for multiple purposes” and meeting diversified production needs.
Q：Is the PLC HMI control system of the HQ-1000B easy to operate for beginners?
A：Yes, the HMI touch screen interface is user-friendly with clear process prompts and intuitive parameter setting. Ordinary workers can master the basic operation skills after 1-2 days of training, without the need for professional technical personnel.
Q：What are the energy-saving advantages of the HQ-1000B compared with similar products?
A：The HQ-1000B adopts an optimized energy-saving structure and efficient components, whose energy consumption is 15%-20% lower than similar products. It can save a lot of electricity costs for enterprises during long-term continuous production.
Q：What after-sales services are provided for the HQ-1000B?
A：We provide global after-sales services including free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts. Our professional engineers are available for overseas service to solve technical problems in time.
