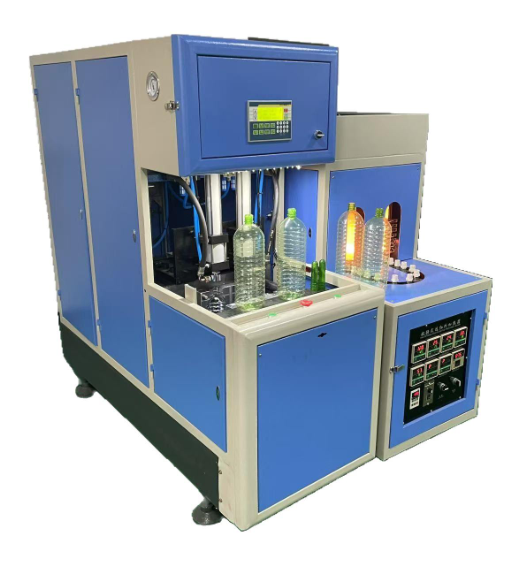

HQ-1000 3L Semi-Automatic High-Compatibility Bottle Blowing Machine (1-Cavity)
Our semi automatic high compatibility bottle blowing machine HQ-1000 3L is a professional blow molding equipment with high compatibility for multiple 3L bottle types and efficient production structure.The HQ-1000 3L is a high-performance semi-automatic bottle blowing machine customized for 3L and below medium-capacity packaging, featuring a 1-cavity forming structure. Equipped with PLC HMI control and modular design, it supports the production of oil bottles, beverage bottles, medicine bottles, chemical containers and special-shaped products like tennis ball cans, with a stable output of 800 bottles per hour. It integrates easy operation, low energy consumption and wide compatibility advantages, making it the preferred equipment for small and medium-sized enterprises with diversified production needs.
Our semi automatic high compatibility bottle blowing machine HQ-1000 3L supports quick mold change within 25 minutes, enabling flexible production of multiple 3L bottle types without replacing the entire mold base.
Core Features
The semi automatic high compatibility bottle blowing machine HQ-1000 3L is equipped with an adjustable clamping system, which can adapt to different bottle neck sizes and shapes, ensuring high compatibility for 3L packaging.As a semi-automatic bottle blowing machine focusing on 3L medium-capacity products, the HQ-1000 combines practical production needs with advanced technical design. Its core features focus on operation simplicity, production flexibility and cost control, effectively solving the pain points of high labor cost and narrow application range in small and medium-sized enterprises’ production, and realizing the balance of high efficiency and low investment.Compared with standard semi-automatic models, our semi automatic high compatibility bottle blowing machine HQ-1000 3L reduces mold replacement time by 60%, making it ideal for small-batch multi-specification 3L bottle production.
1-Cavity High-Efficiency Forming with 800BPH Stable Output
The HQ-1000 adopts a 1-cavity forming structure optimized for 3L medium-capacity bottles, achieving a stable output of 800 bottles per hour. The precise mold clamping and infrared heating system ensures uniform wall thickness and high forming qualification rate of finished bottles, which is reliable for small and medium batches of production. Referring to industry advanced design, it avoids mutual interference during forming, ensuring consistent product quality even in long-term continuous operation.
PLC HMI Control System for Intelligent & Simple Operation
Equipped with a computer PLC system and HMI (Human-Machine Interface) control, the HQ-1000 realizes intelligent operation of the whole production process. The user-friendly touch screen interface allows operators to easily set and adjust process parameters such as temperature, blowing pressure and stretch speed. It also supports real-time monitoring of equipment operation status and fault alarm, enabling ordinary workers to master the operation skills after simple training, without the need for professional technical personnel. The system can store multiple sets of process parameters for different bottle types, which can be directly called when switching production.
Low Energy Consumption & Compact Small Footprint
Optimized through energy-saving structural design and efficient component configuration, the HQ-1000 achieves lower energy consumption while ensuring high output. Compared with similar products, its energy consumption is reduced by 15%-20%, effectively saving long-term operation costs for enterprises. At the same time, the machine adopts a compact structural design with a small footprint, which can make full use of workshop space and is suitable for small and medium-sized factories with limited production area.
Modular Design for Easy Mold Change & Maintenance
The HQ-1000 adopts a humanized modular design, which splits the core components into independent modules, making mold change and daily maintenance more convenient. The replacement of molds for different capacity or shape bottles can be completed in a short time, reducing production downtime caused by mold change. The modular components are easy to disassemble and inspect, effectively reducing maintenance cost and time, and ensuring continuous and stable production.
3L Wide Compatibility for Multi-Type Containers
The HQ-1000 is designed with wide compatibility, supporting the production of plastic bottles and special-shaped containers within 3L, including oil bottles, soda bottles, mineral water bottles, medicine bottles, chemical bottles and tennis ball cans. It can adapt to different bottle shapes and calibers by adjusting process parameters, realizing “one machine for multiple purposes” and effectively reducing the equipment investment cost of enterprises.
Technical Parameters
The following detailed technical parameters of the HQ-1000 3L semi-automatic bottle blowing machine cover output, capacity range, control system, structural design and other core indicators. The structured presentation helps you quickly judge whether it matches your production line configuration and actual demand, providing a professional reference for purchase decisions.
All core components of the semi automatic high compatibility bottle blowing machine HQ-1000 3L are made of high-grade stainless steel, ensuring stable operation of the high compatibility system and long service life.
| Category | Item | Specification |
| Output | – | 800 PCS/H (3L bottle, 1-cavity) |
| Product Capacity | Capacity Range | ≤3L (compatible with 2L/1L small capacity) |
| Applicable Containers | Plastic bottles, medicine bottles, chemical reagent bottles, tennis ball cans, etc. | |
| Control System | Type | PLC with HMI (Human-Machine Interface) |
| Cavity Number | – | 1-Cavity |
| Core Advantages | – | High efficiency, low energy consumption, wide compatibility, modular design |
| Power Supply | Voltage | 380V/3P/50HZ (custom 220V available for global use) |
| Rated Power | 23 kW (reference industry benchmark) | |
| Applicable Materials | – | PET (main), PP (custom available) |
| Air Source | Working Pressure | 0.7-0.9 Mpa |
| Blowing Pressure | 2.2-2.8 Mpa | |
| High-Pressure Air Consumption | 7.0 m³/min (reference industry 3L model) | |
| Dimensions & Weight | Main Unit (approx.) | 1700×800×2300 mm / 0.925 T |
| Temperature Adjustment Range | – | 15-110 ℃ (for PET materials) |
Application Scenarios
With 3L wide capacity compatibility and modular design, the HQ-1000 is widely used in food and beverage, edible oil, daily chemical, pharmaceutical and chemical industries. It can adapt to the production of regular plastic bottles and special-shaped containers, effectively meeting the diversified packaging needs of different industries and improving production flexibility.
Whether you produce 3L edible oil bottles, beverage bottles, or daily chemical bottles, the semi automatic high compatibility bottle blowing machine HQ-1000 3L can meet your production needs with its flexible adjustment and high compatibility.
After-Sales Service
We provide comprehensive after-sales support for the HQ-1000 3L semi-automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of the production line.
We provide free on-site installation and operator training for the semi automatic high compatibility bottle blowing machine HQ-1000 3L, and offer a 1-year warranty for core components to ensure your production continuity.
FAQ About HQ-1000 3L Semi-Automatic Bottle Blowing Machine
Q：What is the production efficiency of the HQ-1000 for small-capacity bottles below 3L?
A：The HQ-1000 has a stable output of 800 bottles per hour for 3L bottles. For smaller capacity bottles (such as 2L or 1L), the production efficiency can be appropriately improved, which is suitable for diversified production needs of enterprises.
Q：Is the PLC HMI control system of the HQ-1000 easy to operate for beginners?
A：Yes, the HMI touch screen interface is user-friendly with clear process prompts and intuitive parameter setting. Ordinary workers can master the basic operation skills after 1-2 days of training, without the need for professional technical personnel.
Q：How long does it take to change the mold of the HQ-1000 for different bottle types?
A：Thanks to the modular structural design, the mold change of the HQ-1000 can be completed quickly, and the whole process only takes a short time, which effectively reduces the production downtime caused by mold change and improves the overall production efficiency.
Q：What are the energy-saving advantages of the HQ-1000 compared with similar products?
A：The HQ-1000 adopts an optimized energy-saving structure and efficient components, whose energy consumption is 15%-20% lower than similar products. It can save a lot of electricity costs for enterprises during long-term continuous production.
Q：What after-sales services are provided for the HQ-1000?
A：We provide global after-sales services including free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts. Our professional engineers are available for overseas service to solve technical problems in time.
