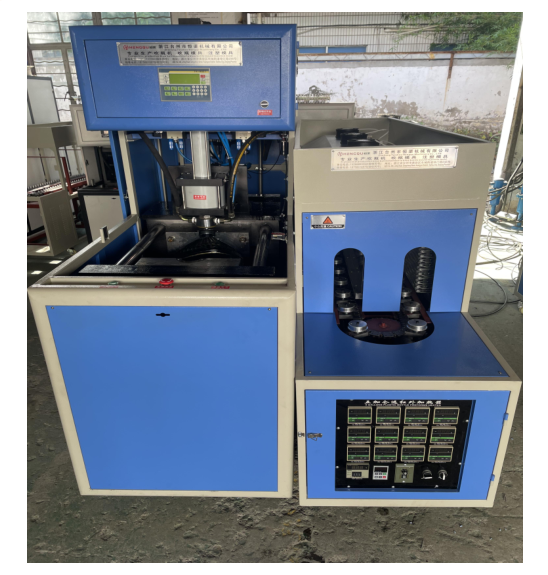

HQ-100 20L Semi-Automatic High-Compatibility Bottle Blowing Machine

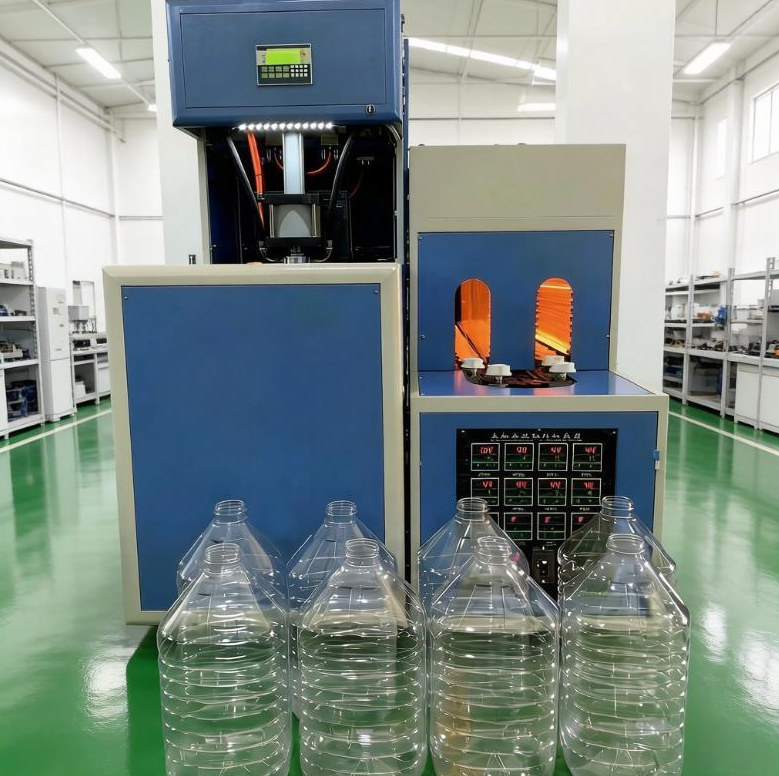

Our semi automatic high compatibility bottle blowing machine HQ-100 20L is a professional blow molding equipment designed for 20L PET bottles with high compatibility for multiple bottle types and sizes.With a stable output of 150 bottles per hour (one bottle per cycle), it supports the production of oil bottles, chemical bottles, medicine bottles and special containers like tennis ball cans. Equipped with PLC intelligent control and modular design, it integrates high compatibility, low energy consumption and easy maintenance—ideal for small and medium-sized enterprises with diversified production needs.Our semi automatic high compatibility bottle blowing machine HQ-100 20L supports quick mold change within 10 minutes, realizing flexible production of different 20L bottle types without additional equipment modification.
Core Features
The semi automatic high compatibility bottle blowing machine HQ-100 20L is equipped with an adjustable heating zone, which can adapt to PET materials of different thicknesses for 20L chemical and edible oil bottles.As a high-compatibility semi-automatic blow molding machine for 20L bottles, the HQ-100 stands out with practical technical advantages. Its core design directly addresses the pain points of small-scale manufacturers: complex operation, high energy consumption and difficult maintenance, realizing the balance of low investment, high efficiency and stable performance.Compared with fixed-model equipment, our semi automatic high compatibility bottle blowing machine HQ-100 20L reduces mold replacement costs by 30% for small and medium-sized enterprises.
20L Ultra-High Compatibility for Multi-Type Containers
The HQ-100 features ultra-high compatibility, capable of producing all types of plastic bottles and special irregular containers within 20L, including oil bottles, soda bottles, mineral water bottles, liquor bottles, medicine bottles, chemical bottles and tennis ball cans. The adjustable mold clamping system and stretch stroke adapt to different bottle shapes and capacities, realizing “one machine for multiple purposes” and effectively reducing equipment investment costs for enterprises.
PLC Intelligent Control System for Simple Operation
Equipped with an advanced PLC computer control system (adopting international brand core components), the HQ-100 realizes intelligent operation of the whole production process. The humanized operation interface allows operators to easily set and adjust process parameters such as temperature, blowing pressure and time. It also supports real-time monitoring of equipment operation status and fault alarm, enabling ordinary workers to master the operation skills after simple training—no professional technical background required, greatly reducing training costs and operation difficulty.
Low Energy Consumption & Compact Small Footprint
Adopting an optimized energy-saving structural design and efficient heating system, the HQ-100 achieves low energy consumption while ensuring high output. Compared with similar products in the market, its energy consumption is reduced by 15%-20%, effectively saving long-term operation costs for enterprises. At the same time, the machine has a compact structure with a small footprint (2800×720×2160 mm approx.), which is suitable for small and medium-sized factories with limited workshop space.

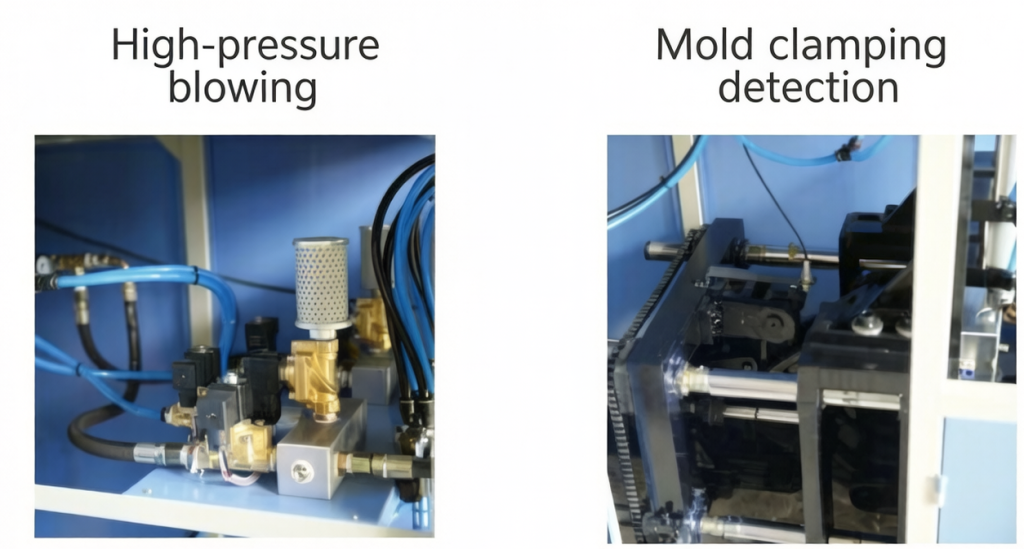

Modular Design for Easy Mold Change & Maintenance
The HQ-100 adopts a humanized modular design, splitting core components into independent modules such as heating, mold clamping and blowing systems. The replacement of molds for different bottle types can be completed in a short time, reducing production downtime caused by mold change. The modular components are easy to disassemble and inspect, with standardized spare parts that are convenient to replace—effectively reducing maintenance costs and time, and ensuring continuous and stable production.
Technical Specifications
The following detailed technical parameters of the HQ-100 20L semi-automatic bottle blowing machine cover output, capacity, control system, structural design and other core indicators. All specifications comply with international industrial standards, providing a professional reference for your production line configuration and purchase decision.All sensors of the semi automatic high compatibility bottle blowing machine HQ-100 20L are imported from Switzerland, ensuring high precision and stability in 20L bottle forming.
| Category | Item | Specification |
| Output | – | 150 PCS/H (20L bottle, one bottle per cycle) |
| Product Capacity | Bottle Volume | ≤20L (custom available for small capacity) |
| Max. Bottle Neck Diameter | ≤65 mm | |
| Max. Bottle Diameter | ≤300 mm | |
| Max. Bottle Height | ≤500 mm | |
| Mold System | Cavity Number | 1-Cavity |
| Mold Clamping Force | 80 KN | |
| Mold Opening Stroke | ≤350 mm | |
| Mold Thickness Range | 350-420 mm | |
| Heating System | Type | Infrared Lamp Heating |
| Power | 10 kW | |
| Control System | Type | PLC Intelligent Control System |
| Power Supply | Voltage | 380V/3P/50HZ (custom 220V available) |
| Rated Power | 12 kW | |
| Air Source | Working Pressure | ≤1.0 Mpa |
| Blowing Pressure | ≤4.0 Mpa | |
| Dimensions & Weight | Main Unit | 2800×720×2160 mm / 2.5 T |
| Heating Oven | 2200×750×1800 mm / 0.8 T | |
| Core Advantages | – | High compatibility, low energy consumption, modular design |
Application Scenarios
The semi automatic high compatibility bottle blowing machine HQ-100 20L is widely used in chemical, edible oil, and pesticide packaging industries, covering 90% of 20L PET bottle specifications on the market.It can adapt to the production of regular bottles and special-shaped containers, meeting the diversified packaging needs of different industries and improving production flexibility.
Custom Service & After-Sales Guarantee
We provide one-stop customization and comprehensive after-sales services for the HQ-100 20L semi-automatic bottle blowing machine, covering custom mold design, parameter optimization, on-site installation training and core component warranty—ensuring the long-term stable operation of your production line.
FAQ About HQ-100 20L Semi-Automatic Bottle Blowing Machine
Q：What materials is the HQ-100 suitable for blowing bottles?
A：It is mainly suitable for PET materials, which are widely used in 20L oil bottles, chemical bottles and beverage packaging. It can also be customized to support PP materials according to specific production needs, meeting diverse packaging requirements.
Q：How long does it take to change the mold of the HQ-100 for different bottle types?
A：Thanks to the modular design and standardized mold interface, the mold change can be completed in 30-60 minutes, which effectively reduces production downtime and improves overall production efficiency.
Q：Does the HQ-100 support custom voltage for different countries?
A：Yes, the standard voltage is 380V/3P/50HZ, and we can provide custom 220V voltage configuration according to the power supply standards of different countries and regions, adapting to the global production environment.
Q：What is the failure rate of the HQ-100 during long-term operation?
A：The machine adopts high-quality core components and optimized structural design, with a failure rate lower than 0.5% during continuous operation. It can support 24-hour stable production under normal maintenance, which is far below the industry average.
Q：What after-sales services are provided for the HQ-100?
A：We offer free on-site installation training, 1-year warranty for core components (PLC system, heating system, etc.), permanent technical support, and fast global supply of spare parts. Our professional engineers are available for overseas service to solve technical problems in a timely manner.
