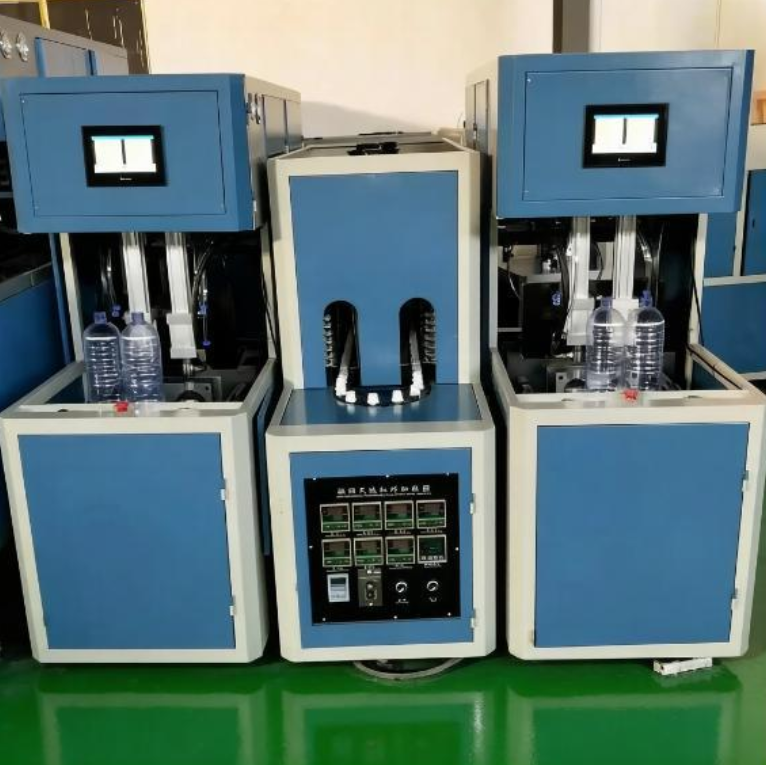

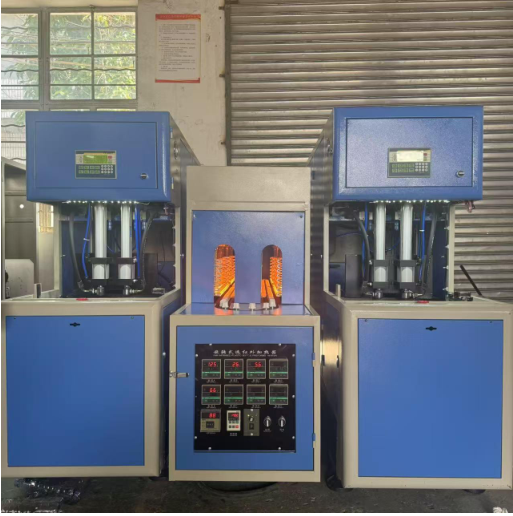

HQ-1000B 2L Semi-Automatic High-Compatibility Bottle Blowing Machine (1-Drag-2)
Our semi automatic bottle blowing machine HQ-1000B 2L 1 drag 2 is a high-efficiency blow molding equipment customized for 2L and below small-to-medium capacity plastic bottle production with 1-drag-2 dual-station structure.The HQ-1000B is a high-efficiency semi-automatic bottle blowing machine customized for 2L and below small-to-medium capacity packaging, featuring a unique 1-Drag-2 structure and automatic mold clamping detection. Equipped with PLC HMI control and adjustable stretch cylinder, it supports the production of oil bottles, beverage bottles, medicine bottles and chemical containers, with a stable output of 1800 bottles per hour. The dual-operator simultaneous operation design doubles production efficiency, making it the preferred equipment for small and medium-sized enterprises with mass production needs.
Our semi automatic bottle blowing machine HQ-1000B 2L 1 drag 2 adopts a 1-drag-2 dual-station structure, which doubles the production capacity compared with single-station models, making it ideal for small-batch 2L bottle production.
Core Features
The semi automatic bottle blowing machine HQ-1000B 2L 1 drag 2 is equipped with an independent heating system for each cavity, ensuring uniform heating of bottle blanks and reducing the reject rate of 2L bottles.As a semi-automatic bottle blowing machine with 1-Drag-2 structure focusing on 2L capacity products, the HQ-1000B combines practical production needs with advanced technical design. Its core features focus on high efficiency, operation simplicity and production flexibility, effectively solving the pain points of low output and high labor cost in small and medium-sized enterprises’ production, and realizing the balance of high efficiency and low investment.
1-Drag-2 Structure with 1800BPH Stable Output
The HQ-1000B adopts an innovative 1-Drag-2 structure, which allows two operators to work simultaneously, realizing double production efficiency compared with traditional single-station models. With a stable output of 1800 bottles per hour for 2L products, it effectively solves the problem of low output of small semi-automatic equipment, meeting the mass production needs of enterprises without high investment in fully automatic lines. The reasonable structural design avoids mutual interference between stations, ensuring consistent product quality.
PLC HMI Control System for Intelligent Operation
Equipped with a computer PLC system and HMI (Human-Machine Interface) control, the HQ-1000B realizes intelligent operation of the whole production process. The user-friendly touch screen interface supports quick parameter setting, order storage and multi-group formula saving, which can be directly called when switching production batches. It also has real-time operation monitoring and fault alarm functions, enabling ordinary workers to master the operation skills after simple training, without the need for professional technical personnel.
PLC HMI Control System for Intelligent Operation
Optimized through energy-saving structural design and efficient component configuration, the HQ-1000B achieves lower energy consumption while ensuring high output. Compared with similar products, its energy consumption is reduced by 15%-20%, effectively saving long-term operation costs for enterprises. At the same time, the machine adopts a compact structural design with a small footprint, which can make full use of workshop space and is suitable for small and medium-sized factories with limited production area.

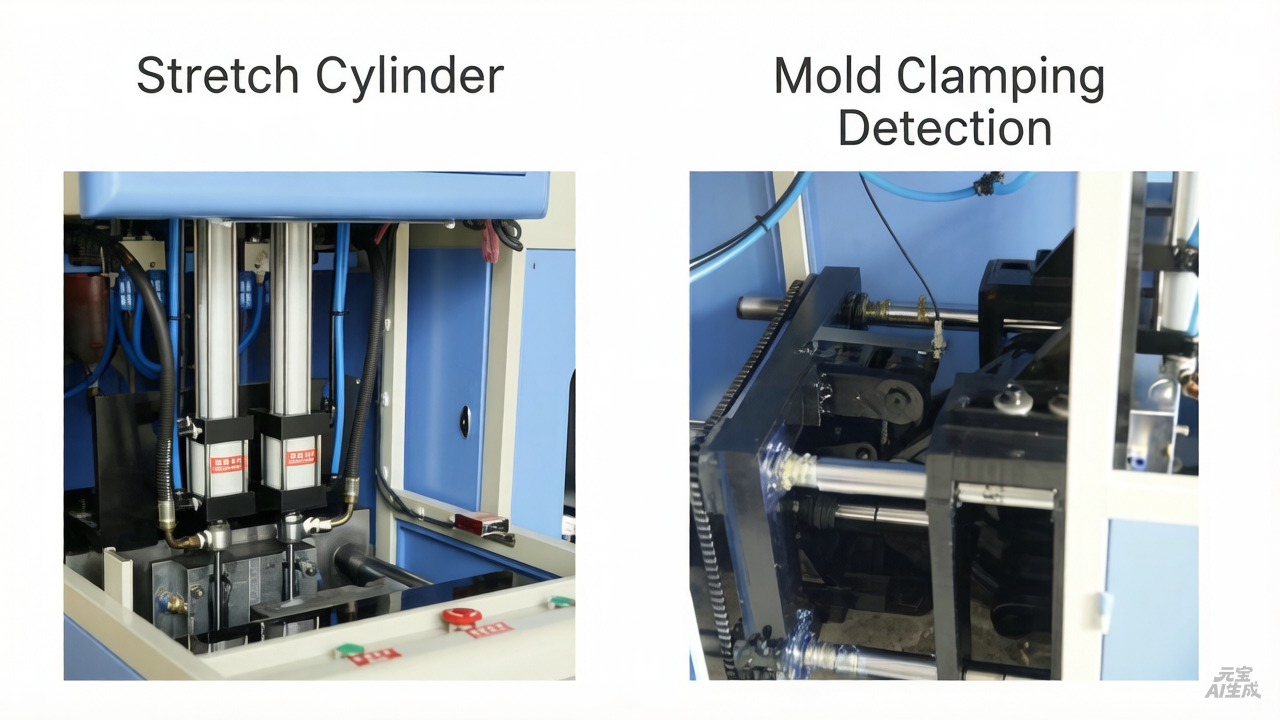

Adjustable Stretch Cylinder for Wide Compatibility
The HQ-1000B is equipped with an adjustable stretch cylinder, which can flexibly adjust the stretch length according to different bottle shapes and capacities (≤2L). This design greatly expands the compatibility range of the machine, enabling it to produce not only regular bottles such as oil bottles, soda bottles and mineral water bottles but also special-shaped containers with different heights and calibers. It realizes “one machine for multiple purposes” and effectively reduces the equipment investment cost of enterprises.
Mold Clamping Detection for Safe & Reliable Operation
Equipped with a professional mold clamping detection system, the HQ-1000B can real-time monitor the mold clamping status during operation. If there is an abnormal situation such as incomplete clamping, the machine will automatically stop and alarm, avoiding equipment damage and safety accidents. This design ensures the safety of operators and the stability of the production process, reducing the scrap rate caused by mold clamping problems.
Technical Parameters
The following detailed technical parameters of the HQ-1000B 2L semi-automatic bottle blowing machine cover output, capacity range, control system, structural design and other core indicators. The structured presentation helps you quickly judge whether it matches your production line configuration and actual demand, providing a professional reference for purchase decisions.All core components of the semi automatic bottle blowing machine HQ-1000B 2L 1 drag 2 are made of high-quality stainless steel, ensuring stable operation of the 1-drag-2 structure and long service life.
| Category | Item | Specification |
| Output | – | 1800 PCS/H (2L bottle, 1-Drag-2 structure) |
| Product Capacity | Capacity Range | ≤2L (custom available for small capacity) |
| Applicable Containers | Plastic bottles, medicine bottles, chemical reagent bottles, etc. | |
| Control System | Type | PLC with HMI (Human-Machine Interface) |
| Core Structure | – | 1-Drag-2 (dual-operator simultaneous operation) |
| Safety Function | – | Mold clamping detection system |
| Key Component | – | Adjustable stretch cylinder |
| Core Advantages | – | High efficiency, low energy consumption, wide compatibility |
| Power Supply | Voltage | 380V/3P/50HZ (custom 220V available for global use) |
| Rated Power | 28 kW (reference industry benchmark) | |
| Applicable Materials | – | PET (main), PP (custom available) |
| Air Source | Working Pressure | 0.7-0.9 Mpa |
| Blowing Pressure | 2.2-2.8 Mpa | |
| Dimensions & Weight | Main Unit (approx.) | 2800×1600×1900 mm / 2.8 T |
| Temperature Adjustment Range | – | 15-110 ℃ (for PET materials) |
Application Scenarios
With 2L wide capacity compatibility and adjustable stretch cylinder technology, the HQ-1000B is widely used in food and beverage, edible oil, daily chemical, pharmaceutical and chemical industries. It can adapt to the production of various regular plastic bottles, meeting the diversified packaging needs of different industries and improving production flexibility.Whether you produce 2L mineral water bottles, edible oil bottles or daily chemical bottles, the semi automatic bottle blowing machine HQ-1000B 2L 1 drag 2 can meet your production needs with its flexible adjustment and high efficiency.
After-Sales Service
We provide free on-site installation and operator training for the semi automatic bottle blowing machine HQ-1000B 2L 1 drag 2, and offer a 1-year warranty for core components to ensure your production continuity.A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of the production line.
FAQ About HQ-1000B 2L Semi-Automatic Bottle Blowing Machine (1-Drag-2)
Q：What is the advantage of the 1-Drag-2 structure of the HQ-1000B?
A：The 1-Drag-2 structure allows two operators to work simultaneously, doubling the production efficiency compared with traditional single-station models. It can achieve a stable output of 1800 bottles per hour for 2L bottles, meeting mass production needs with low investment.
Q：Can the PLC HMI control system of the HQ-1000B store multiple sets of parameters?
A：Yes, the system supports multi-group formula parameter storage and reading. You can store different process parameters for various bottle types, and directly call them when switching production, saving parameter setting time.
Q：What is the scope of capacity adjustment for the adjustable stretch cylinder?
A：The adjustable stretch cylinder can flexibly adapt to the production of bottles with a capacity of ≤2L, supporting the adjustment of stretch length according to different bottle heights and shapes, and realizing wide compatibility of bottle types.
Q：How does the mold clamping detection system ensure production safety?
A：The mold clamping detection system can real-time monitor the mold clamping status. If there is an abnormal situation such as incomplete clamping, the machine will automatically stop and alarm, avoiding equipment damage and personal safety risks.
Q：What after-sales services are provided for the HQ-1000B?
A：We provide global after-sales services including free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts. If you encounter any problems during use, our technical team will respond within 24 hours to provide solutions.
