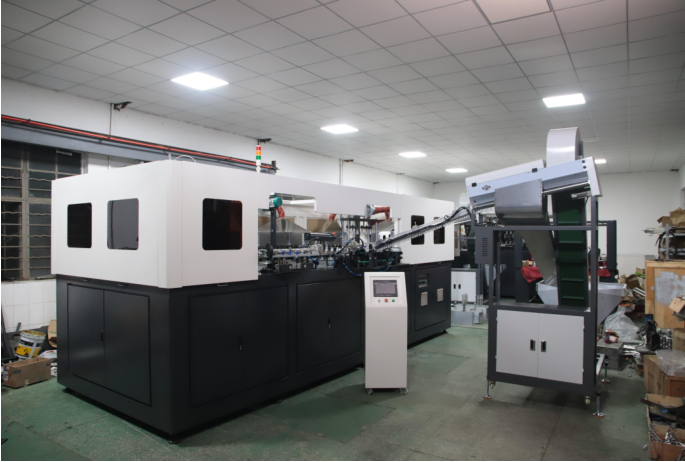

Fully Automatic High Speed Bottle Blowing Machine HQ-6000 1 Cavity 6
Our fully automatic high speed bottle blowing machine HQ-6000 1 cavity 6 is a professional large-scale blow molding equipment with 1-cavity-6 ultra-high-speed forming structure, designed for mass production of plastic bottles. This model is tailored for medium and large-sized packaging enterprises, featuring 6000BPH high capacity, stable operation, and low energy consumption, making it the ideal choice for large-batch bottle production.Our fully automatic high speed bottle blowing machine HQ-6000 1 cavity 6 adopts a servo-driven high-speed clamping system, ensuring synchronous operation of 6 cavities and stable high-speed production.
Core Advantages of Fully Automatic High Speed Bottle Blowing Machine HQ-6000 1 Cavity 6
The fully automatic high speed bottle blowing machine HQ-6000 1 cavity 6 features a 1-cavity-6 multi-station design, which increases production capacity to 6000 bottles per hour, meeting the demand for large-scale bottle production.As a fully automatic bottle blowing machine with 6-cavity structure focusing on 1.5L capacity products, the HQ-6000 combines advanced technical design with practical production needs. Its core features focus on high efficiency, precision manufacturing and automation intelligence, effectively solving the pain points of low output and high labor cost in enterprises’ mass production, and realizing the balance of high yield and stable quality.Compared with low-speed models, our fully automatic high speed bottle blowing machine HQ-6000 1 cavity 6 improves production efficiency by 300% while maintaining high product quality, making it more suitable for large-scale packaging enterprises.
6-Cavity Synchronous Forming with 7000BPH High Output
The HQ-6000 adopts a 6-cavity synchronous forming design optimized for 1.5L bottles, achieving a stable output of 7000 bottles per hour. The rational cavity layout and precise flow distribution system ensure consistent forming precision of each cavity, avoiding the problem of uneven bottle quality. Compared with 2-4 cavity models, the production efficiency is significantly improved, which is suitable for large-scale mass production lines of beverage and food enterprises.
Servo Drive Mold Clamping for Fast Cycle Time
The mold clamping mechanism of the HQ-6000 adopts advanced servo drive technology, realizing simultaneous mold opening and closing on both sides. This design shortens the forming cycle time by 15%-20% compared with traditional hydraulic drive, effectively increasing production capacity. The servo system also ensures smooth and stable mold movement, reducing wear of components and extending the service life of the machine.
CNC-Machined Components for High Precision & Standardization
All core components of the HQ-6000 are custom-made by CNC machining centers, ensuring the standardization and precision of every part. The high-precision components reduce assembly errors, improve the overall stability of the machine, and reduce the failure rate during long-term operation. This manufacturing process also ensures the interchangeability of spare parts, facilitating later maintenance and replacement.
Touch-Screen HMI Control for Intelligent Operation
Equipped with a touch-screen color HMI control system, the HQ-6000 realizes full-process intelligent operation. The user-friendly interface allows operators to easily set and adjust process parameters such as temperature, blowing pressure and production speed. It also supports real-time monitoring of equipment operation status, fault alarm and multi-group parameter storage, enabling ordinary workers to master the operation skills after simple training, without the need for professional technical personnel.
Air Conveyor Compatible for Labor Saving & Hygiene
The bottle outlet of the HQ-6000 is designed with a special connection structure, which can be directly linked with the air conveyor to the filling machine. This seamless connection design eliminates manual bottle handling links, not only saving labor costs but also reducing secondary contamination of bottles, ensuring product hygiene and safety. It fully meets the hygiene standards of food, beverage and pharmaceutical industries, which is a key advantage for high-demand packaging production.
Technical Parameters of Fully Automatic High Speed Bottle Blowing Machine HQ-6000 1 Cavity 6
The following detailed technical parameters of the HQ-6000 1.5L fully automatic bottle blowing machine cover output, capacity, control system, structural design and other core indicators. The structured presentation helps you quickly judge whether it matches your production line configuration and actual demand, providing a professional reference for purchase decisions.All core components of the fully automatic high speed bottle blowing machine HQ-6000 1 cavity 6 are made of high-grade materials, ensuring long-term stable operation of the 1-cavity-6 high-speed structure and servo control system.
| Category | Item | Specification |
| Output | – | 7000 PCS/H (1.5L bottle, 6-Cavity) |
| Finished Product Size | Bottle Capacity | 1500 ml (1.5L) |
| Max. Bottle Neck Diameter | 45 mm | |
| Max. Bottle Diameter | 104 mm | |
| Max. Bottle Height | 300 mm | |
| Mold Closing Parameters | Cavity Number | 6 |
| Film Thickness | 188 mm | |
| Mold Opening Stroke | 127 mm | |
| Center Distance | 114.3 mm | |
| Heating Parameters | Oven Quantity | 4+1 |
| Lamp Tube Quantity | 36+9 | |
| Lamp Tube Power | 2000 W | |
| Heating Head Quantity | 110 | |
| Power Supply | Voltage | 380V/3P/50HZ |
| Rated Power | 60 kW | |
| Theoretical Hourly Power Consumption | 40 kW | |
| Air Source | High Pressure Air Consumption | 6.0-10 cubic screw booster compressor |
| Low Pressure Air Consumption | 2.2 cubic air compressor | |
| Cooling Water | Recommended Chiller | 10P |
| Blowing Machine Dimensions/Weight | Main Unit Dimensions/Weight | 5880×2300×2400 mm / 7.5 T |
| Preform Feeder Dimensions/Weight | 2400×1350×2550 mm / 0.3 T | |
| Core Configuration | – | Servo drive mold clamping, CNC-machined components |
Application Scenarios of Fully Automatic High Speed Bottle Blowing Machine HQ-6000 1 Cavity 6
With 1.5L capacity compatibility and 6-cavity high-speed forming technology, the HQ-6000 is widely used in food and beverage, daily chemical, pharmaceutical and cosmetic industries. It can adapt to the production of various regular and special-shaped plastic bottles, meeting the mass packaging needs of different industries and improving production line efficiency.Whether you produce large-capacity beverage bottles, edible oil bottles or mineral water bottles, the fully automatic high speed bottle blowing machine HQ-6000 1 cavity 6 can meet your large-scale production needs with its ultra-high speed and stable performance.
After-sales Service for Fully Automatic High Speed Bottle Blowing Machine HQ-6000 1 Cavity 6
We provide comprehensive after-sales support for the HQ-6000 1.5L fully automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of the production line.
We provide free on-site installation and operator training for the fully automatic high speed bottle blowing machine HQ-6000 1 cavity 6, and offer a 2-year warranty for core components to ensure your production continuity.
FAQ About HQ-6000 1.5L Fully Automatic Bottle Blowing Machine (6-Cavity)
Q：What is the advantage of the servo drive mold clamping system of the HQ-6000?
A：The servo drive system enables simultaneous mold opening/closing on both sides, shortening the forming cycle time by 15%-20% compared with traditional hydraulic drive. It also ensures stable operation, reducing component wear and extending machine service life.
Q：Can the HQ-6000 be integrated into existing production lines?
A：Yes, the bottle outlet is designed with a standard connection structure, which can be seamlessly linked with air conveyors and filling machines. It is compatible with most conventional production line configurations, realizing automated integration from bottle blowing to filling.
Q：What materials is the HQ-6000 suitable for blowing bottles?
A：The machine is mainly suitable for PET materials, the most common material for food, beverage and cosmetic packaging bottles. It can also be customized to support PP materials according to specific production needs, expanding application scope.
Q：How does the CNC-machined components improve the machine’s performance?
A：CNC machining ensures the standardization and precision of each component, reducing assembly errors and improving overall stability. It also enhances the interchangeability of spare parts, facilitating later maintenance and reducing downtime.
Q：What after-sales services are provided for the HQ-6000?
A：We provide global after-sales services including free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts. Our professional engineers are available for overseas service to solve technical problems in a timely manner.
