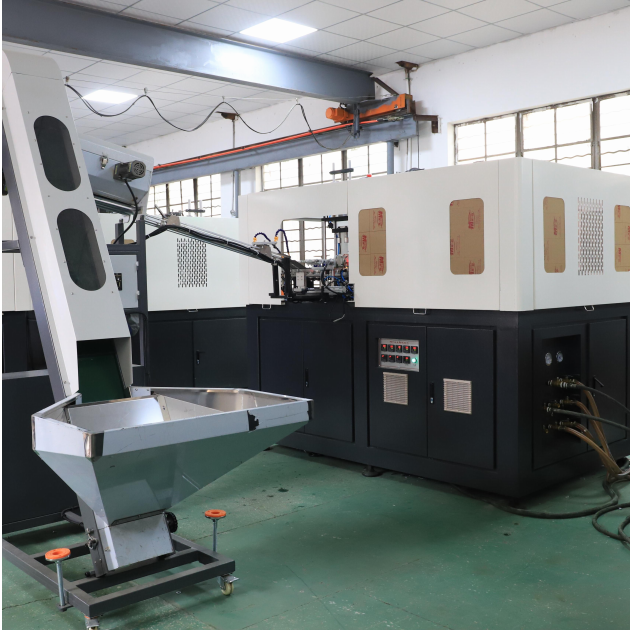

Fully Automatic High Speed Bottle Blowing Machine HQ-2000 1 Cavity 2
Our fully automatic high speed bottle blowing machine HQ-2000 1 cavity 2 is a high-efficiency small-bottle molding equipment featuring a 1-cavity-2 synchronous structure. Designed for medium and large-scale production needs, this model delivers 2400BPH high capacity, stable servo control and energy-saving performance, making it the ideal choice for mass production of 1.5L to 2L plastic bottles.Equipped with advanced PLC control system, our fully automatic high speed bottle blowing machine HQ-2000 1 cavity 2 ensures precise temperature control and high forming accuracy, significantly reducing the defective rate during mass production.
Core Advantages of Fully Automatic High Speed Bottle Blowing Machine HQ-2000 1 Cavity 2
The fully automatic high speed bottle blowing machine HQ-2000 1 cavity 2 adopts a dual-cavity simultaneous blowing design, which doubles the output compared with single-cavity machines while maintaining stable operation, greatly improving production efficiency for small-bottle packaging enterprises.As a fully automatic blow molding machine with 2-cavity structure focusing on 1.8L capacity products, the HQ-2000 combines advanced technical design with practical production needs. Its core features focus on energy efficiency, intelligent operation and flexible application, effectively solving the pain points of high energy consumption and limited loading modes in enterprises’ mass production, and realizing the balance of high yield and low cost.Compared with standard semi-automatic models, our fully automatic high speed bottle blowing machine HQ-2000 1 cavity 2 features fully automated operation, from bottle blank feeding to finished bottle output, minimizing manual intervention and ensuring consistent product quality.
2-Cavity Synchronous Forming with 2200BPH Stable Output
The HQ-2000 adopts a 2-cavity synchronous forming design optimized for 1.8L bottles, achieving a stable output of 2200 bottles per hour. The rational cavity layout and precise flow distribution system ensure consistent forming precision of each cavity, avoiding the problem of uneven bottle quality. Compared with single-cavity models, the production efficiency is significantly improved, which is suitable for medium-scale mass production lines of beverage and food enterprises.
40% Energy-Saving with Ruby Lamp Tube Heating
Equipped with chain conveyor structure and high-performance ruby lamp tubes, the HQ-2000 has a reasonably calculated infrared wavelength that ensures uniform preform heating. This advanced heating system saves 40% on heating energy compared with traditional models, effectively reducing long-term operation costs for enterprises and conforming to the global low-carbon production trend.
Touch-Screen HMI Control for Intelligent Operation
Adopting a touch-screen color HMI control system, the HQ-2000 realizes full-process intelligent operation. The user-friendly interface allows operators to easily set and adjust process parameters such as temperature, blowing pressure and production speed. It also supports real-time monitoring of equipment operation status, fault alarm and multi-group parameter storage, enabling ordinary workers to master the operation skills after simple training, without the need for professional technical personnel.
Conveyor Compatible for Seamless Production Line Integration
The bottle outlet of the HQ-2000 is designed with a special connection structure, which can be directly linked with a conveyor to transport formed bottles to the next process. This seamless connection design eliminates manual bottle handling links, not only saving labor costs but also reducing secondary contamination of bottles, ensuring product hygiene and safety. It fully meets the hygiene standards of food, beverage and pharmaceutical industries, which is a key advantage for high-demand packaging production.
Conveyor Compatible for Seamless Production Line Integration
The HQ-2000 features a unique machine platform combination design, supporting both mechanical and manual preform loading modes. This flexible design maximizes the machine’s superiority, adapting to different production scales and scenarios. Enterprises can choose the appropriate loading mode according to their actual production needs, improving production flexibility and emergency response capabilities.
Technical Parameters of Fully Automatic High Speed Bottle Blowing Machine HQ-2000 1 Cavity 2
The following detailed technical parameters of the HQ-2000 1.8L fully automatic bottle blowing machine cover output, capacity, control system, structural design and other core indicators. The structured presentation helps you quickly judge whether it matches your production line configuration and actual demand, providing a professional reference for purchase decisions.
All core components of the fully automatic high speed bottle blowing machine HQ-2000 1 cavity 2 are made of high-strength wear-resistant materials, ensuring long-term stable operation of the 1-cavity-2 structure and extending the service life of the equipment.
| Item | Sub-item | Specification |
| Output | – | 2200 PCS/H |
| Finished Product Size | Bottle Capacity | 1800 ml |
| Max. Bottle Neck Diameter | 45 mm | |
| Max. Bottle Diameter | 105 mm | |
| Max. Bottle Height | 300 mm | |
| Clamping Parameters | Cavity Number | 2 |
| Film Thickness | 200 μm | |
| Mold Opening Stroke | 135 mm | |
| Center Distance | 114.3 mm | |
| Heating Parameters | Oven Quantity | 3 |
| Lamp Tube Quantity | 24 | |
| Lamp Tube Power | 2000 W | |
| Heating Head Quantity | 60 | |
| Power Supply | Voltage | 380V/3P/50Hz |
| Rated Power | 16 kW | |
| Theoretical Hourly Power Consumption | 16 kWh | |
| Air Source | High Pressure Air Consumption | 1.6 m³/h high-pressure air compressor or 2.0 m³/h |
| Low Pressure Air Consumption | 2.2 m³/h low-pressure air compressor | |
| Cooling Water | Recommended Chiller | 5p |
| Blow Molding Host Dimensions/Weight | – | 312017702060 mm / 3.5 T |
| Preform Feeder Dimensions/Weight | – | 240013502550 mm / 0.3 T |
Application Scenarios of Fully Automatic High Speed Bottle Blowing Machine HQ-2000 1 Cavity 2
With 1.8L capacity compatibility and 2-cavity high-speed forming technology, the HQ-2000 is widely used in food and beverage, edible oil, daily chemical, pharmaceutical and cosmetic industries. It can adapt to the production of various regular and special-shaped plastic bottles, meeting the mass packaging needs of different industries and improving production line efficiency.
Suitable for producing 1.5L mineral water bottles, 2L beverage bottles and daily chemical bottles, the fully automatic high speed bottle blowing machine HQ-2000 1 cavity 2 can flexibly adjust parameters to meet different production needs with its high-speed and high-efficiency characteristics.
After-sales Service for Fully Automatic High Speed Bottle Blowing Machine HQ-2000 1 Cavity
We provide comprehensive after-sales support for the HQ-2000 1.8L fully automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of the production line.
We provide one-stop services including free on-site installation, technical training and lifetime maintenance for the fully automatic high speed bottle blowing machine HQ-2000 1 cavity 2, ensuring your production runs smoothly without interruption.
FAQ About HQ-2000 1.8L Fully Automatic Bottle Blowing Machine (2-Cavity)
Q：What makes the HQ-2000’s heating system 40% more energy-saving?
A：The machine uses ruby lamp tubes with optimized infrared wavelength and chain conveyor structure, ensuring uniform preform heating while reducing energy waste. This design achieves a 40% energy-saving rate compared to traditional heating systems, lowering long-term operation costs.
Q：Can the HQ-2000 be integrated into existing production lines?
A：Yes, the bottle outlet supports direct connection with conveyors, enabling seamless transportation of finished bottles to the next process. It is compatible with most conventional production line configurations, realizing automated integration from bottle blowing to filling.
Q：What materials is the HQ-2000 suitable for blowing bottles?
A：The machine is mainly suitable for PET materials, the most common material for food, beverage and cosmetic packaging bottles. It can also be customized to support PP materials according to specific production needs, expanding application scope.
Q：Why does the HQ-2000 support both mechanical and manual preform loading?
A：The dual loading design adapts to different production scenarios—mechanical loading for large-scale mass production to improve efficiency, and manual loading for small batches or emergency situations, enhancing production flexibility.
Q：What after-sales services are provided for the HQ-2000?
A：We provide global after-sales services including free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts. Our professional engineers are available for overseas service to solve technical problems in a timely manner.
