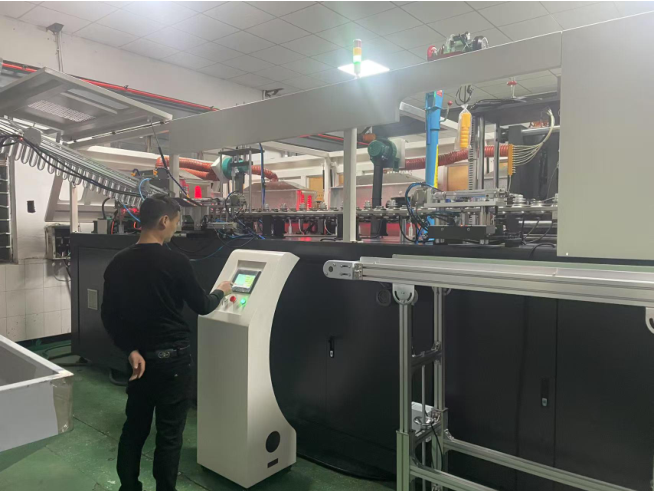

HQ-5000Ⅱ 5L Fully Automatic High-Speed Bottle Blowing Machine (2-Cavity)
Our fully automatic bottle blowing machine HQ-5000II 5L 2 cavity is a high-efficiency blow molding equipment designed for producing 5L PET bottles, such as water bottles, oil bottles and edible oil containers. With 2-cavity high-speed forming and fully automatic operation, this machine delivers stable performance and high output for medium-scale bottle production.The fully automatic bottle blowing machine HQ-5000II 5L 2 cavity adopts a precise heating system and dual-cavity mold design, ensuring uniform bottle wall thickness and consistent product quality.
Core Advantages of Fully Automatic Bottle Blowing Machine HQ-5000II 5L 2 Cavity
The fully automatic bottle blowing machine HQ-5000Ⅱ 5L 2 cavity adopts a 2-cavity synchronous forming design, which increases production capacity to 1600 PCS/H, meeting the demand for large-batch 5L bottle production.As a fully automatic bottle blowing machine focusing on 5L capacity products, the HQ-5000Ⅱ combines advanced technical design with practical production needs. Its core features focus on energy efficiency, automation intelligence and production stability, effectively solving the pain points of high energy consumption and labor cost in enterprises’ mass production, and realizing the balance of high output and low operation cost.Compared with single-cavity models, our fully automatic bottle blowing machine HQ-5000Ⅱ 5L 2 cavity improves production efficiency by 100% while maintaining high product quality, which is more suitable for medium and large-sized packaging enterprises.
2-Cavity High-Efficiency Forming with 1600BPH Stable Output
The HQ-5000Ⅱ adopts an optimized 2-cavity synchronous forming design, achieving a stable output of 1600 bottles per hour for 5L products. The precise mold clamping system and synchronous control technology ensure consistent forming precision of the two cavities, avoiding the problem of uneven bottle quality. Compared with traditional 1-cavity models, the production efficiency is doubled, which is suitable for mass production lines of medium and large-scale enterprises.
40% High-Pressure Gas Recovery for Energy Saving
Equipped with a high-pressure gas recovery device and compact high-pressure combination air valve, the HQ-5000Ⅱ achieves a gas recovery efficiency of up to 40%. This design not only reduces the investment cost of low-pressure gas equipment but also reduces power consumption by 15% compared with similar products, effectively saving long-term operation costs for enterprises and conforming to the global energy-saving production trend.
Touch-Screen HMI Control for Intelligent Operation
Adopting a touch-screen color HMI control system, the HQ-5000Ⅱ realizes full-process intelligent operation. The user-friendly interface allows operators to easily set and adjust process parameters such as temperature, blowing pressure and production speed. It also supports real-time monitoring of equipment operation status, fault alarm and parameter storage, enabling ordinary workers to master the operation skills after simple training, without the need for professional technical personnel.
Air Conveyor Compatible for Labor Saving & Hygiene

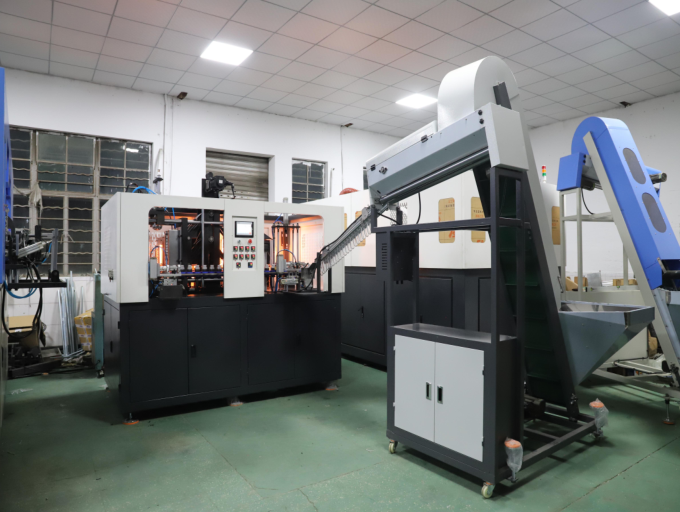

The bottle outlet of the HQ-5000Ⅱ is designed with a special connection structure, which can be directly linked with the air conveyor to the filling machine. This seamless connection design eliminates manual bottle handling links, not only saving labor costs but also reducing secondary contamination of bottles, ensuring product hygiene and safety, which is especially suitable for food and beverage industries with high hygiene requirements.
Technical Parameters of Fully Automatic Bottle Blowing Machine HQ-5000II 5L 2 Cavity
The following detailed technical parameters of the HQ-5000Ⅱ 5L fully automatic bottle blowing machine cover output, capacity, control system, energy consumption and other core indicators. The structured presentation helps you quickly judge whether it matches your production line configuration and actual demand, providing a professional reference for purchase decisions.
All core components of the fully automatic bottle blowing machine HQ-5000Ⅱ 5L 2 cavity are made of high-quality materials, ensuring stable operation of the
| Category | Item | Specification |
| Output | – | 1600 PCS/H (5L bottle, 2-Cavity) |
| Finished Product Size | Bottle Capacity | 5000 ml (5L) |
| Max. Bottle Neck Diameter | 60 mm | |
| Max. Bottle Diameter | 185 mm | |
| Max. Bottle Height | 380 mm | |
| Mold Closing Parameters | Cavity Number | 2 |
| Film Thickness | 260 mm | |
| Mold Opening Stroke | 285 mm | |
| Center Distance | 200 mm | |
| Heating Parameters | Oven Quantity | 5 |
| Lamp Tube Quantity | 55 | |
| Lamp Tube Power | 2000 W | |
| Heating Head Quantity | 64 | |
| Power Supply | Voltage | 380V/3P/50HZ |
| Rated Power | 30 kW | |
| Theoretical Hourly Power Consumption | 30 kW | |
| Air Source | High Pressure Air Consumption | 1.6-2.0 cubic/min |
| Low Pressure Air Consumption | 2.2 cubic/min (air compressor required) | |
| Cooling Water | Recommended Chiller | 5P |
| Blowing Machine Dimensions/Weight | Main Unit Dimensions/Weight | 5920×2250×2440 mm / 5.5 T |
| Preform Feeder Dimensions/Weight | 2400×1350×2550 mm / 0.3 T | |
| Core Energy-Saving Feature | – | High-pressure gas recovery (efficiency up to 40%) |
Application Scenarios of Fully Automatic Bottle Blowing Machine HQ-5000II 5L 2 Cavity
With 5L capacity compatibility and high automation technology, the HQ-5000Ⅱ is widely used in food and beverage, edible oil, daily chemical and other industries. It can adapt to the production of regular plastic bottles such as mineral water bottles, cooking oil bottles and liquor bottles, meeting the mass packaging needs of different industries and improving production line efficiency.Whether you produce 5L edible oil bottles, mineral water bottles or beverage bottles, the fully automatic bottle blowing machine HQ-5000Ⅱ 5L 2 cavity can meet your large-scale production needs with its high speed and energy-saving features.
After-sales Service for Fully Automatic Bottle Blowing Machine HQ-5000II 5L 2 Cavity
We provide comprehensive after-sales support for the HQ-5000Ⅱ 5L fully automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of the production line.
We provide free on-site installation and operator training for the fully automatic bottle blowing machine HQ-5000Ⅱ 5L 2 cavity, and offer a 2-year warranty for core components to ensure your production continuity.
FAQ About Fully Automatic Bottle Blowing Machine HQ-5000II 5L 2 Cavity
Q：What is the energy-saving effect of the HQ-5000Ⅱ’s high-pressure gas recovery device?
A：The high-pressure gas recovery efficiency of the HQ-5000Ⅱ is as high as 40%, which can reduce the investment in low-pressure gas equipment and reduce power consumption by 15% compared with similar products, saving significant operation costs for long-term production.
Q：Can the HQ-5000Ⅱ be connected to existing filling production lines?
A：Yes, the bottle outlet is designed with a special connection structure, which can be seamlessly linked with the air conveyor to the filling machine, realizing the integration of bottle blowing and filling processes, and improving the overall efficiency of the production line.
Q：Is the touch-screen HMI control system of the HQ-5000Ⅱ easy to operate for beginners?
A：Absolutely. The user-friendly touch-screen interface has clear parameter prompts and intuitive operation logic. Ordinary workers can master basic operation skills after 1-2 days of training, without professional technical background.
Q：What is the maximum bottle size that the HQ-5000Ⅱ can produce?
A：The machine is mainly designed for 5L bottles, with a maximum bottle diameter of 185 mm and a maximum height of 380 mm, which can cover most standard 5L water, oil and liquor bottles in the market.
Q：What after-sales services are provided for the HQ-5000Ⅱ?
A：We provide global after-sales services including free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts. Engineers are available for overseas service to solve technical problems in time.
