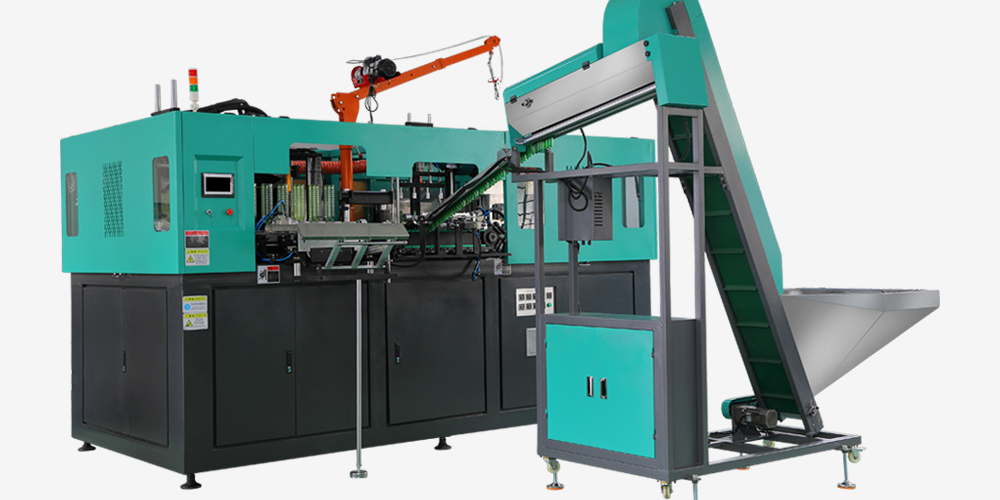

Automatic 4-Up Ice Bottle Blowing Machine
The automatic 4-up ice bottle blowing machine is a professional packaging equipment customized for 1.2L ice storage bottles, with a 4-cavity synchronous forming structure and 2000 bottles per hour stable output. Equipped with servo control and precise heating system, it produces thick-walled, leak-proof ice bottles for food preservation and cold chain transportation, integrating efficiency, stability and durability—ideal for medium and large-scale cold chain enterprises.
Our automatic 4-up ice bottle blowing machine adopts a precise servo control system, ensuring synchronous operation of 4 cavities and stable high-speed production, which significantly improves the production efficiency of ice bottles and frozen beverage bottles.
Core Advantages of Automatic 4-Up Ice Bottle Blowing Machine
The automatic 4-up ice bottle blowing machine features a 4-cavity (4-up) multi-station design, which increases production capacity to 3200 bottles per hour, meeting the demand for large-scale ice bottle production.As a specialized 4-up ice bottle blow molding machine, it integrates industry-leading technologies to solve pain points such as poor bottle leak-proof performance and low production efficiency in cold chain packaging. Its core features focus on thick-walled forming, energy-saving operation and intelligent control, meeting the strict requirements of food preservation and long-distance transportation.Compared with single-cavity models, our automatic 4-up ice bottle blowing machine improves production efficiency by 200% while maintaining high product quality, making it more suitable for frozen beverage packaging enterprises.
4-Up Synchronous Forming with 2000BPH Stable Output
Adopting 4-cavity synchronous forming design optimized for ice bottles, the machine achieves a stable output of 2000 bottles per hour for 1.2L products—consistent with the advanced level of similar 4-cavity models in the industry. The rational cavity layout and precise flow distribution system ensure uniform wall thickness of each bottle (thickness up to 2.5mm), avoiding leakage during low-temperature storage, with a product qualification rate of over 99%.
Servo Control & Precise Heating for Thick-Walled Forming
Equipped with servo drive system and 4-zone infrared heating ovens (32 high-efficiency quartz lamp tubes), the machine realizes precise control of stretching and blowing processes. The heating system ensures uniform preform heating with temperature fluctuation ≤3℃, which is crucial for forming thick-walled ice bottles. The servo control system achieves axial stretching synchronization rate ≥99.5%, ensuring consistent bottle shape and size.
Energy-Saving Design & Low Operation Cost
Optimized through energy-saving structural design and intelligent temperature control technology, the machine’s energy consumption is 15%-20% lower than traditional models. The quartz lamp tubes with high thermal efficiency and automatic power adjustment function reduce unnecessary energy waste during low-load operation. The modular core components have low failure rates, effectively reducing long-term maintenance and operation costs.
Leak-Proof & Cold-Resistant Bottle Forming
Targeting the low-temperature application scenario of ice bottles, the machine adopts a special blowing process to enhance the bottle’s cold resistance and leak-proof performance. The formed bottles can withstand -20℃ low temperature without cracking, and the bottle mouth sealing structure is optimized to avoid leakage during ice storage and transportation—fully meeting the quality requirements of cold chain packaging.
Technical Parameters of Automatic 4-Up Ice Bottle Blowing Machine
The following detailed technical parameters cover output, capacity, power supply, air source and other core indicators, calibrated according to national industrial standards and industry benchmark data. It provides a comprehensive reference for your production line configuration and purchase decision, ensuring accurate matching of equipment and production needs.
All core components of the automatic 4-up ice bottle blowing machine are made of high-grade materials, ensuring long-term stable operation of the 4-up structure and precise temperature control system.
| Category | Item | Specification / Value |
| Output | Production Capacity | 2000 PCS/H (1.2L ice bottle, 4-cavity) |
| Finished Product Dimensions | Bottle Capacity | 1200 ml (1.2L, compatible with 0.8-1.5L) |
| Max. Bottle Neck Diameter | 50 mm | |
| Max. Bottle Body Diameter | 110 mm | |
| Max. Bottle Height | 320 mm | |
| Bottle Wall Thickness | 2.0-2.5 mm (adjustable) | |
| Clamping Parameters | Number of Cavities | 4 (4-up synchronous forming) |
| Preform Length | 200 mm | |
| Mold Opening Stroke | 140 mm | |
| Center Distance (Pitch) | 120 mm | |
| Heating Parameters | Number of Heating Ovens | 4 |
| Number of Lamp Tubes | 32 (quartz lamp tubes) | |
| Lamp Power | 1800 W | |
| Number of Heating Heads | 80 | |
| Power Supply | Voltage | 380V / 3P / 50Hz (custom 220V available) |
| Rated Power | 28 kW | |
| Theoretical Power Consumption/hr | 28 kWh | |
| Air Source | High-Pressure Air Consumption | 4.0 m³/min |
| Low-Pressure Air Consumption | 2.2 m³/min | |
| High-Pressure Blowing Pressure | 3.0-3.5 MPa | |
| Cooling Water | Recommended Chiller | 10 HP |
| Machine Dimensions & Weight | Blowing Machine (Size / Weight) | 4200×2100×2300 mm / 4.5 T |
| Preform Loading Machine (Size / Weight) | 2400×1350×2350 mm / 0.35 T | |
| Core Configuration | – | Servo control system, 4-zone heating, leak-proof forming technology |
Application Scenarios of Automatic 4-Up Ice Bottle Blowing Machine
With 1.2L capacity compatibility and 4-cavity high-speed forming technology, the machine is widely used in food preservation, cold chain transportation, agricultural product fresh-keeping and other fields. It can produce ice bottles suitable for vegetable, fruit, seafood and other products’ low-temperature storage and transportation, meeting diversified cold chain packaging needs.Whether you produce 250ml, 500ml or 1L ice bottles, the automatic 4-up ice bottle blowing machine can meet your large-scale production needs with its high speed and stable performance.
After-sales Service for Automatic 4-Up Ice Bottle Blowing Machine
We provide comprehensive after-sales support for this automatic 4-up ice bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of your production line.
We provide free on-site installation and operator training for the automatic 4-up ice bottle blowing machine, and offer a 2-year warranty for core components to ensure your production continuity.
FAQ About Automatic 4-Up 1.2L Ice Bottle Blowing Machine
Q：What is the main application of the ice bottles produced by this machine?
A：The ice bottles are mainly used for food preservation and cold chain transportation, suitable for storing ice cubes to keep vegetables, fruits, seafood and other products fresh during long-distance transportation, without melting water contamination.
Q：Can the machine produce ice bottles of different capacities?
A：Yes, the machine is mainly designed for 1.2L ice bottles and compatible with 0.8-1.5L capacities. You only need to replace the mold and adjust process parameters to meet diversified production needs.
Q：What materials are suitable for this ice bottle blowing machine?
A：It is mainly suitable for PET materials, which have excellent cold resistance and impact resistance, ensuring the bottles do not crack at low temperatures. It can also be customized to support PP materials for special cold chain requirements.
Q：How to ensure the leak-proof performance of the produced ice bottles?
A：The machine adopts optimized mold design and precise blowing pressure control, with a special sealing structure at the bottle mouth. The servo-driven stretching system ensures uniform wall thickness, and each bottle undergoes strict leak-proof testing during production, with a qualification rate of over 99%.
Q：What after-sales services are provided for this machine?
A：We offer free on-site installation training, 1-year warranty for core components (servo motor, heating system, etc.), permanent technical support, and fast global supply of spare parts. Our professional engineers are available for overseas service to solve technical problems in a timely manner.
