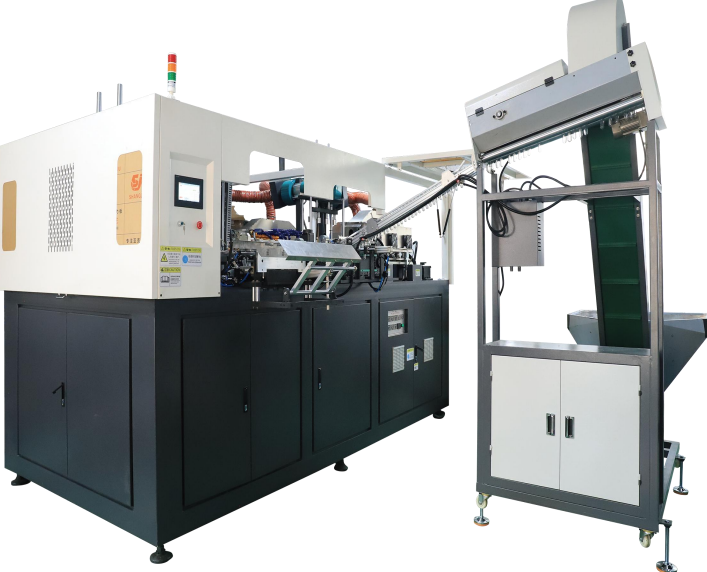

Automatic 4 Cavity Mineral Water Bottle Blow Molding Machine
Our automatic 4 cavity mineral water bottle blow molding machine is a professional large-scale blow molding equipment with 4-cavity synchronous forming structure, designed for high-efficiency mass production of mineral water bottles. This model is tailored for medium and large-sized beverage packaging enterprises, featuring 4000BPH high capacity, stable operation, and energy-saving performance, making it the ideal choice for mineral water bottle production lines.Our automatic 4 cavity mineral water bottle blow molding machine adopts a precise servo control system, ensuring synchronous operation of 4 cavities and stable high-speed production, which significantly improves the production efficiency of mineral water bottles.
Core Advantages of Automatic 4 Cavity Mineral Water Bottle Blow Molding Machine
The automatic 4 cavity mineral water bottle blow molding machine features a 4-cavity multi-station design, which increases production capacity to 4000 bottles per hour, meeting the demand for large-scale mineral water bottle production.As a professional blow molding machine for mineral water bottles, this 4-cavity equipment integrates energy-saving technology, intelligent control and stable performance. It effectively solves the pain points of low efficiency and high energy consumption in beverage production, realizing the balance of high yield and low operation cost.Compared with single-cavity models, our automatic 4 cavity mineral water bottle blow molding machine improves production efficiency by 300% while maintaining high product quality, making it more suitable for large-scale beverage packaging enterprises.
4-Cavity Synchronous Forming with 2500BPH Stable Output
Adopting 4-cavity synchronous forming design, the machine achieves a stable output of 2500 bottles per hour for 1.5L mineral water bottles, which is consistent with the industry advanced level of similar models. The rational cavity layout and precise flow distribution ensure uniform wall thickness of each bottle, reducing the scrap rate to below 1%, suitable for large-scale beverage production.
Energy-Saving Heating System with 32 Ruby Lamp Tubes
Equipped with 4 heating ovens and 32 high-efficiency ruby lamp tubes (1500W each), the machine realizes precise and uniform preform heating. The intelligent temperature control system adjusts power according to production speed, saving 15%-20% energy compared with traditional models, conforming to low-carbon production trends.
Servo Control for Intelligent & Stable Operation
Integrated with servo motor and touch-screen control system, the machine realizes full-process automated operation. Operators can easily set parameters such as heating temperature and blowing pressure, with real-time fault alarm and parameter storage functions. The modular design ensures independent operation of preform feeding and blowing links, optimizing production efficiency.
Seamless Integration with Beverage Production Lines
The bottle outlet is designed with a standard connection structure, which can be directly linked with conveyors and filling machines. This seamless integration eliminates manual handling, reduces secondary contamination of bottles, and improves the overall efficiency of the beverage packaging line.
Technical Parameters of Automatic 4 Cavity Mineral Water Bottle Blow Molding Machine
The following detailed technical parameters cover output, capacity, power supply and other core indicators, providing a comprehensive reference for your production line configuration and purchase decision. All parameters are calibrated according to industry standards to ensure accuracy.
All core components of the automatic 4 cavity mineral water bottle blow molding machine are made of high-grade materials, ensuring long-term stable operation of the 4-cavity structure and precise control system.
| Category | Item | Specification / Value |
| Output | Production Capacity | 2500 PCS/H (1.5L mineral water bottle) |
| Finished Product Dimensions | Bottle Capacity | 1500 ml (compatible with 0.5-1.5L) |
| Max. Bottle Neck Diameter | 45 mm | |
| Max. Bottle Body Diameter | 104 mm | |
| Max. Bottle Height | 300 mm | |
| Clamping Parameters | Number of Cavities | 4 |
| Preform Length | 188 mm | |
| Mold Opening Stroke | 127 mm | |
| Center Distance (Pitch) | 114.3 mm | |
| Heating Parameters | Number of Heating Ovens | 4 |
| Number of Lamp Tubes | 32 (ruby lamp tubes) | |
| Lamp Power | 1500 W | |
| Number of Heating Heads | 78 | |
| Power Supply | Voltage | 380V / 3P / 50Hz |
| Rated Power | 24 kW | |
| Theoretical Power Consumption/hr | 24 kWh | |
| Air Source | High-Pressure Air Consumption | 3.5 m³/min (reference industry benchmark) |
| Low-Pressure Air Consumption | 2.0 m³/min (reference industry benchmark) | |
| Cooling Water | Recommended Chiller | 8 HP (matched by production capacity) |
| Machine Dimensions & Weight | Blowing Machine (Size / Weight) | 3980×2050×2225 mm / 4.0 T |
| Preform Loading Machine (Size / Weight) | 2400×1350×2300 mm / 0.3 T | |
| Core Configuration | – | Servo control system, modular design |
Application Scenarios of Automatic 4 Cavity Mineral Water Bottle Blow Molding Machine
With 1.5L capacity compatibility and 4-cavity high-speed forming technology, the machine is widely used in bottled water, carbonated drinks, fruit juice and other beverage packaging industries. It can also adapt to the production of small-caliber food packaging bottles, meeting diversified production needs.Whether you produce 500ml, 1L or 1.5L mineral water bottles, the automatic 4 cavity mineral water bottle blow molding machine can meet your large-scale production nee
After-sales Service for Automatic 4 Cavity Mineral Water Bottle Blow Molding Machine
We provide comprehensive after-sales support for this automatic blow molding machine, covering on-site installation training, core component warranty and technical consultation, ensuring the long-term stable operation of your production line.
We provide free on-site installation and operator training for the automatic 4 cavity mineral water bottle blow molding machine, and offer a 2-year warranty for core components to ensure your production continuity.
FAQ About 4-Cavity 1.5L Mineral Water Bottle Blowing Machine
Q：What is the production efficiency of this 4-cavity blow molding machine?
A：It has a stable output of 2500 bottles per hour for 1.5L mineral water bottles, and the efficiency can be adjusted according to bottle capacity (0.5-1.5L) and process parameters.
Q：What materials is the machine suitable for?
A：It is mainly designed for PET materials, the most common material for mineral water bottles and beverage packaging. It can also be customized to support PP materials for special packaging needs.
Q：How to ensure the energy-saving performance of the machine?
A：The machine adopts intelligent temperature control heating system and energy-saving servo motor, which reduces energy consumption by 15%-20% compared with traditional models, saving long-term operation costs.
Q：Can the machine be integrated into existing production lines?
A：Yes, the bottle outlet has a standard connection structure, which can be seamlessly linked with conveyors, filling machines and other equipment, realizing automated integration of the beverage packaging line.
Q：What after-sales services are provided?
A：We offer free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts to ensure uninterrupted production.
