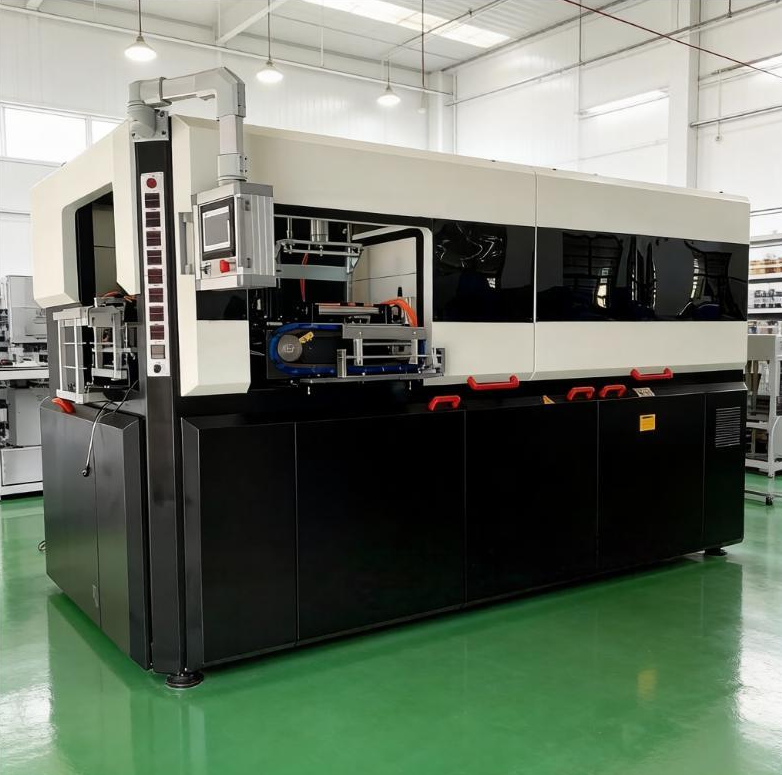

20L Fully Automatic Bottle Blowing Machine
Our 20L fully automatic bottle blowing machine is a professional large-capacity blow molding equipment designed for producing 20L PET bottles, such as water dispenser bottles, oil bottles and chemical containers. With fully automatic operation and stable performance, this machine delivers high efficiency and reliable quality for large-scale bottle production.The 20L fully automatic bottle blowing machine adopts a single-cavity high-precision structure, ensuring uniform wall thickness and stable production of 20L large-capacity bottles, which is ideal for water and oil packaging industries
Core Advantages of 20L Fully Automatic Bottle Blowing Machine
As a specialized solution for large bottles, our 20L fully automatic bottle blowing machine features automatic preform feeding, blowing and finished bottle output, minimizing manual intervention and improving production efficiency. Its core features focus on stable operation, high forming precision and low energy consumption, solving the pain points of large-capacity bottle production such as uneven wall thickness and low efficiency.
Compared with semi-automatic models, the 20L fully automatic bottle blowing machine reduces labor costs by 50% while increasing output by 30%, making it the optimal choice for 20L bottle manufacturing enterprises.
1-Cavity High-Speed Forming with 700BPH Stable Output
The HQ-20L adopts a 1-cavity forming structure optimized for 20L large-capacity bottles, achieving a stable output of 700 bottles per hour—consistent with the advanced level of similar 1-cavity models in the industry. The independent cavity design avoids mutual interference during forming, ensuring uniform wall thickness and high qualification rate (over 99%), suitable for mass production of large-capacity packaging.

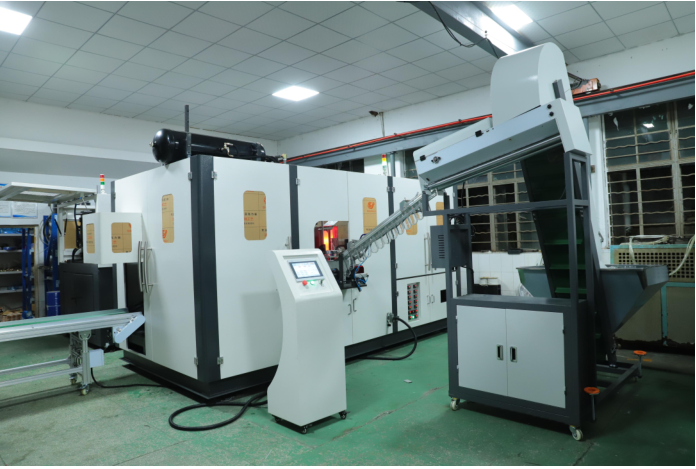

Variable-Pitch Transmission for Smooth Operation
The main components of the HQ-20L feature a variable-pitch transmission design, which optimizes the conveying speed and forming rhythm of the preform. This design not only improves forming efficiency but also reduces energy consumption and component wear, enabling 24-hour continuous stable operation with a low failure rate—effectively reducing production downtime.
20L Large-Capacity Special Design
Customized for 20L large-capacity bottles, the machine supports a maximum bottle diameter of 300mm and height of 500mm, perfectly adapting to the production of oil bottles, chemical reagent bottles and bulk packaging containers. The optimized mold clamping structure ensures sufficient clamping force for thick-walled large-capacity bottles, avoiding leakage and deformation.
Precise Heating System for High Forming Quality
Equipped with 4 heating ovens and 48 high-efficiency lamp tubes, the HQ-20L ensures uniform and sufficient heating of preforms. The 42 heating heads adapt to the heating needs of large-capacity preforms, improving the forming precision and surface smoothness of finished bottles—meeting the strict quality requirements of industrial packaging.
Technical Parameters of 20L Fully Automatic Bottle Blowing Machine
With 20L large-capacity compatibility and stable forming performance, the HQ-20L is widely used in edible oil, chemical, bulk packaging and other industries. It can produce food-grade, chemical-resistant large-capacity bottles, meeting the packaging needs of high-volume, heavy-duty products.
All core components of the 20L fully automatic bottle blowing machine are made of high-strength materials, ensuring long service life and stable operation under continuous production conditions.
| Category | Item | Specification |
| Output | – | 700 PCS/H (20L bottle, 1-Cavity) |
| Finished Product Size | Bottle Capacity | 20 L |
| Max. Bottle Neck Diameter | 85 mm | |
| Max. Bottle Diameter | 300 mm | |
| Max. Bottle Height | 500 mm | |
| Mold Closing Parameters | Cavity Number | 1 |
| Film Thickness | 360 mm | |
| Mold Opening Stroke | 330 mm | |
| Center Distance | 400 mm (reference industry benchmark) | |
| Heating Parameters | Oven Quantity | 4 |
| Lamp Tube Quantity | 48 | |
| Lamp Tube Power | 2000 W | |
| Heating Head Quantity | 42 | |
| Power Supply | Voltage | 380V/3P/50HZ |
| Rated Power | 50 kW | |
| Theoretical Hourly Power Consumption | 50 kWh | |
| Air Source | High Pressure Air Consumption | 6.0-8.0 cubic/min screw booster compressor |
| Low Pressure Air Consumption | 2.2 cubic/min | |
| Cooling Water | Recommended Chiller | 5P-8P (matched by production scale) |
| Blowing Machine Dimensions/Weight | Main Unit Dimensions/Weight | 4150×2050×2600 mm / 5.5 T |
| Preform Feeder Dimensions/Weight | 2400×1350×2550 mm / 0.3 T | |
| Core Configuration | – | Variable-pitch transmission design |
Application Scenarios of 20L Fully Automatic Bottle Blowing Machine
With 20L large-capacity compatibility and stable forming performance, the HQ-20L is widely used in edible oil, chemical, bulk packaging and other industries. Whether you produce 20L edible oil bottles, chemical reagent bottles, or water storage bottles, The 20L fully automatic bottle blowing machine is suitable for producing 20L mineral water bottles, edible oil bottles and industrial chemical bottles, meeting diverse packaging needs.
After-sales Service for 20L Fully Automatic Bottle Blowing Machine
We provide comprehensive after-sales support for the HQ-20L 20L fully automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance.
We provide comprehensive after-sales support for the 20L fully automatic bottle blowing machine, including free installation, technical training and lifetime maintenance services.
FAQ About HQ-20L 20L Fully Automatic Bottle Blowing Machine (1-Cavity)
Q：What is the advantage of the variable-pitch transmission design of the HQ-20L?
A：The variable-pitch transmission optimizes preform conveying speed and forming rhythm, reducing energy consumption by 15%-20% compared with traditional models. It also enhances operation stability, enabling 24-hour continuous production with low failure rates.
Q：What materials is the HQ-20L suitable for?
A：It is mainly suitable for PET and PP materials, which are widely used in 20L oil bottles, chemical reagent bottles and bulk packaging containers. Food-grade and chemical-resistant material compatibility can be customized according to needs.
Q：Can the HQ-20L produce bottles of other capacities besides 20L?
A：The machine is mainly designed for 20L large-capacity bottles, and can also produce 10L-20L bottles by replacing molds and adjusting process parameters, adapting to diversified large-capacity packaging needs.
Q：What is the recommended air compressor configuration for the HQ-20L?
A：We recommend a 6.0-8.0 cubic/min screw booster compressor for high-pressure air supply and a 2.2 cubic/min air compressor for low-pressure needs, ensuring stable air source support during production. Q：What after-sales services are provided for the HQ-20L?
A：We offer free on-site installation training, 1-year warranty for core components (variable-pitch transmission, heating system, etc.), permanent technical support, and fast global supply of spare parts. Overseas engineer service is available upon request.
