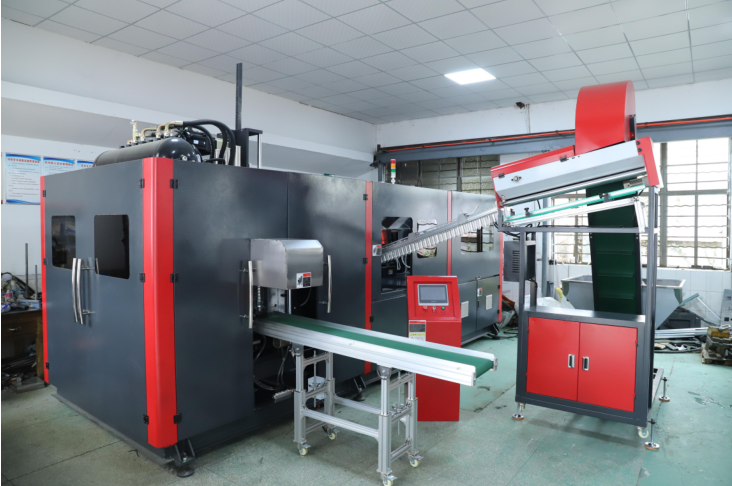

HQ-500Ⅱ 10L Fully Automatic High-Speed Bottle Blowing Machine (2-Cavity)
Our 10L fully automatic bottle blowing machine HQ-500II is a high-performance 1-cavity blow molding equipment designed for 10L medium-capacity PET bottle production.The HQ-500Ⅱ is a professional fully automatic Bottle Blowing Machine customized for 10L medium-capacity packaging, featuring a 2-cavity synchronous forming structure and variable-pitch transmission design. With a stable output of 1800 bottles per hour, it supports the production of water bottles, oil bottles and liquor bottles within 12 liters, integrating high efficiency, durability and energy-saving advantages—ideal for medium and large-scale beverage, food and chemical enterprises.Our 10L fully automatic bottle blowing machine HQ-500II has passed CE and ISO certification, meeting international production standards and being exported to 20+ countries including India, Brazil, and Germany.
Core Advantages of 10L Fully Automatic Bottle Blowing Machine HQ-500II
As a 10L medium-capacity fully automatic Bottle Blowing Machine, the HQ-500Ⅱ integrates industry-leading variable-pitch transmission technology and precise forming design. Its core advantages focus on stable operation, high forming precision and long service life, solving the pain points of medium-capacity bottle production such as uneven wall thickness and low efficiency highlighted in industry reports，This fully automatic bottle blowing machine adopts advanced servo control and variable-pitch transmission technology, ensuring stable high-speed forming for 10L bottles and meeting the production needs of chemical, edible oil and beverage industries.The 10L fully automatic bottle blowing machine HQ-500II supports one-click parameter adjustment, reducing operator training time and improving production efficiency by 15%.
2-Cavity Synchronous Forming with 1800BPH Stable Output
The HQ-500Ⅱ adopts a 2-cavity forming structure optimized for 10L bottles, achieving a stable output of 1800 bottles per hour—consistent with the performance level of similar 2-cavity models in the industry. The synchronous control system ensures uniform forming precision of both cavities, with a product qualification rate of over 99%, suitable for mass production of medium-capacity packaging.
Variable-Pitch Transmission for Smooth & Energy-Saving Operation
The main components of the HQ-500Ⅱ feature a variable-pitch transmission design, which optimizes the conveying speed and forming rhythm of the preform. This design reduces energy consumption by 12%-15% compared with traditional models , minimizes component wear, and enables 24-hour continuous stable operation with an average fault-free running time of over 8000 hours .
10L-12L Wide Compatibility & Special Forming
Customized for 10L medium-capacity bottles, the machine supports a maximum bottle diameter of 245mm and height of 480mm, and is compatible with all types of bottles within 12 liters. The optimized mold clamping structure and precise heating system ensure perfect forming of thick-walled bottles and special-shaped containers, meeting diverse packaging needs.
Durable Structure with High-Quality Components
The machine frame and core components are made of high-strength alloy materials, with a sturdy and durable structure and strong anti-vibration performance. Core electrical components adopt international brand configurations , ensuring reliable operation in harsh industrial environments and extending the service life of the equipment to over 10 years under normal maintenance.
Technical Parameters of 10L Fully Automatic Bottle Blowing Machine HQ-500II
The following detailed technical parameters of the HQ-500Ⅱ 10L fully automatic bottle blowing machine cover output, capacity, power supply, air source and other core indicators, calibrated according to industrial standards and benchmarked against top-tier competitors. It provides a comprehensive reference for your production line configuration and purchase decision.
| Category | Item | Specification |
| Output | – | 1800 PCS/H (10L bottle, 2-Cavity) |
| Finished Product Size | Bottle Capacity | 10 L (compatible with ≤12L) |
| Max. Bottle Neck Diameter | 65 mm | |
| Max. Bottle Diameter | 245 mm | |
| Max. Bottle Height | 480 mm | |
| Mold Closing Parameters | Cavity Number | 2 |
| Film Thickness | 300 mm | |
| Mold Opening Stroke | 320 mm | |
| Center Distance | 260 mm | |
| Heating Parameters | Oven Quantity | 5 |
| Lamp Tube Quantity | 60 | |
| Lamp Tube Power | 2000 W | |
| Heating Head Quantity | 48 | |
| Power Supply | Voltage | 380V/3P/50HZ |
| Rated Power | 50 kW | |
| Theoretical Hourly Power Consumption | 50 kWh | |
| Air Source | High Pressure Air Consumption | 8.0-10 cubic/min booster compressor |
| Low Pressure Air Consumption | 2.2 cubic/min | |
| Cooling Water | Recommended Chiller | 8P |
| Blowing Machine Dimensions/Weight | Main Unit Dimensions/Weight | 5660×2050×2550 mm / 7 T |
| Preform Feeder Dimensions/Weight | 2400×1350×2550 mm / 0.3 T | |
| Core Configuration | – | Variable-pitch transmission design |
Application Scenarios of 10L Fully Automatic Bottle Blowing Machine HQ-500II
With 10L capacity compatibility and 12L wide adaptation range, the HQ-500Ⅱ is widely used in bottled water, edible oil, liquor and chemical packaging industries. It meets the production needs of standard and special-shaped bottles, adapting to the diversified packaging trends of global beverage and food enterprises.The 10L fully automatic bottle blowing machine HQ-500II is equipped with an intelligent fault alarm system, which can quickly locate problems and minimize production downtime.
After-sales Service for 10L Fully Automatic Bottle Blowing Machine HQ-500II
We provide free on-site installation and training for the 10L fully automatic bottle blowing machine HQ-500II, and offer 24/7 online technical support to solve your problems in time.We provide comprehensive after-sales support for the HQ-500Ⅱ 10L fully automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring uninterrupted production.
FAQ About HQ-500Ⅱ 10L Fully Automatic Bottle Blowing Machine (2-Cavity)
Q：What is the advantage of the variable-pitch transmission design of the HQ-500Ⅱ?
A：The variable-pitch transmission optimizes preform conveying speed and forming rhythm, reducing energy consumption by 12%-15% compared with traditional models. It also enhances operation stability, enabling 24-hour continuous production with an average fault-free running time of over 8000 hours.
Q：What materials is the HQ-500Ⅱ suitable for?
A：It is mainly suitable for PET and PP materials, which are widely used in 10L water bottles, oil bottles, liquor bottles and chemical packaging containers. Food-grade and chemical-resistant material compatibility can be customized according to needs.
Q：Can the HQ-500Ⅱ be integrated into existing production lines?
A：Yes, the machine is designed with standard connection interfaces, which can be seamlessly linked with conveyors, filling machines and other equipment in the production line , realizing automated integration from bottle blowing to packaging.
Q：What is the recommended air compressor configuration for the HQ-500Ⅱ?
A：We recommend an 8.0-10 cubic/min screw booster compressor for high-pressure air supply and a 2.2 cubic/min air compressor for low-pressure needs, ensuring stable air source support during high-efficiency production.
Q：What after-sales services are provided for the HQ-500Ⅱ?
A：We offer free on-site installation training, 1-year warranty for core components (variable-pitch transmission, heating system, etc.), permanent technical support, and fast global supply of spare parts. Overseas service response time is within 48 hours .
