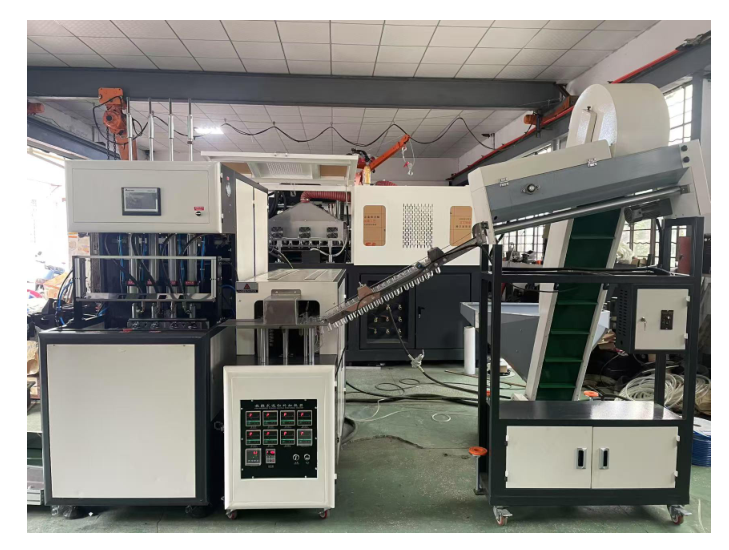

HQ-2000B 1.5L Semi-Automatic Bottle Blowing Machine (Auto-Loading & Ejection)
Our 1.5L semi automatic bottle blowing machine is a professional blow molding equipment specially designed for 1.5L PET plastic bottle production in beverage, daily chemical sample, and small packaging industries. This model is tailored for small and medium-sized enterprises, featuring simple operation, low investment cost, and stable forming quality, which is the ideal choice for 1.5L bottle production with small to medium batch sizes.Our 1.5L semi automatic bottle blowing machine has been upgraded in 2026, with an optimized heating system that shortens the preheating time of 1.5L bottle blanks by 20%, further improving production efficiency for small-batch 1.5L bottle production.
Core Features
As a 1.5l-semi-automatic bottle blowing machine with auto-loading & ejection functions, the HQ-2000B combines practical production needs with advanced technical design. Its core features focus on labor saving, operation simplicity and production stability, effectively solving the pain points of high labor cost and secondary contamination in small and medium-sized enterprises’ production, and realizing the balance of high yield and low operation cost.The 1.5L semi automatic bottle blowing machine supports mold customization for different neck sizes of 1.5L PET bottles, meeting the diversified packaging needs of beverage and daily chemical sample industries.
1.5L Wide Compatibility with 2200BPH Stable Output
Optimized for 1.5L small-capacity bottles, the HQ-2000B achieves a stable output of 2200 bottles per hour—reaching the advanced level of similar models in the industry. It supports the production of mixed bottles, oil bottles, soda bottles, mineral water bottles, liquor bottles, medicine bottles and chemical containers within 1.5L, realizing “one machine for multiple purposes” and effectively reducing equipment investment costs for enterprises.
Auto-Loading & Ejection for Labor Saving & Hygiene

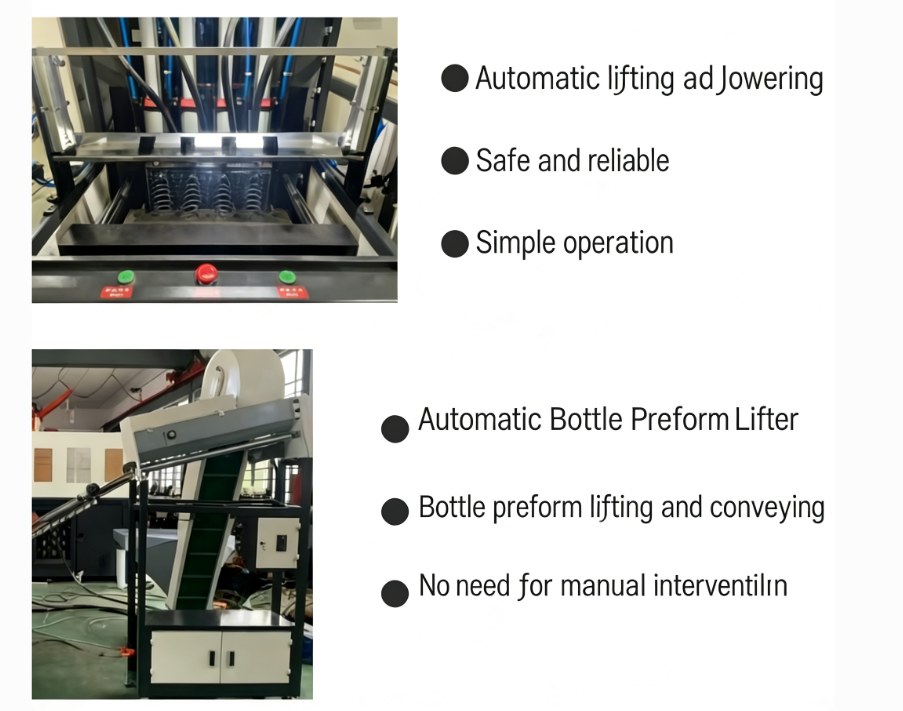

Equipped with an automatic bottle preform lifter and automatic ejection system, the HQ-2000B realizes full-process automatic preform conveying and finished bottle collection without manual intervention. This design saves 2-3 labor costs per shift compared with traditional semi-automatic models, and avoids secondary contamination caused by manual contact with bottles—fully meeting the hygiene requirements of food, beverage and pharmaceutical industries. The automatic lifting system is safe and reliable with simple operation, ensuring continuous and stable production.
Low Investment & High Return Cost-Effective Design
As a cost-effective semi-automatic blow molding machine, the HQ-2000B has a lower initial investment than fully automatic models while maintaining high production efficiency. Its mature structural design and reliable core components reduce maintenance costs and failure rates, and the energy-saving system further reduces long-term operation costs. For small and medium-sized enterprises with limited budgets, it can quickly recover investment through stable mass production.
Conveyor Belt Compatible & Space-Saving Structure
The HQ-2000B supports connection with a conveyor belt, realizing seamless connection between bottle blowing and subsequent packaging processes, further improving production efficiency and reducing manual handling. At the same time, the machine adopts a compact structural design with a small footprint, which can make full use of workshop space and is suitable for small and medium-sized factories with limited production area.
Simple Operation & Wide Compatibility
The HQ-2000B is designed with user-friendliness in mind, adopting a simple operation interface and clear process prompts. Operators can master the operation skills after simple training, without the need for professional technical personnel. It has high compatibility for 1.5L and below small-capacity bottles, supporting the production of oil bottles, soda bottles, mineral water bottles, medicine bottles, chemical bottles and other multi-type products, realizing “one machine for multiple purposes”.
Technical Specifications
The following detailed technical parameters of the HQ-2000B 1.5L semi-automatic bottle blowing machine cover output, capacity, control system, structural design and other core indicators. All specifications comply with international industrial standards (CE, ISO 9001 certified), providing a professional reference for your production line configuration and purchase decision.The control system of the 1.5L semi automatic bottle blowing machine adopts a touch screen operation interface, which is easy to learn and operate, even for workers without professional training.
| Category | Item | Specification |
| Output | – | 2200 PCS/H (1.5L bottle, 1-cavity) |
| Product Capacity | Capacity Range | ≤1.5L (custom available for small capacity) |
| Applicable Containers | Plastic bottles, medicine bottles, chemical reagent bottles, etc. | |
| Control System | Type | Semi-automatic with intelligent operation panel |
| Core Function | – | Automatic loading, automatic ejection, preform lifting |
| Cavity Number | – | 1-Cavity |
| Core Advantages | – | Low investment, high efficiency, conveyor belt compatible |
| Power Supply | Voltage | 380V/3P/50HZ (custom 220V available for global use) |
| Rated Power | 27 kW (reference industry benchmark) | |
| Applicable Materials | – | PET (main), PP (custom available) |
| Air Source | Working Pressure | 0.8-1.0 Mpa |
| Blowing Pressure | 2.6-3.0 Mpa | |
| Dimensions & Weight | Main Unit (approx.) | 2500×1500×1800 mm / 2.5 T |
| Preform Lifter Dimensions (approx.) | 2000×1100×2200 mm / 0.25 T |
Application Scenarios
With 1.5L wide capacity compatibility and auto-loading & ejection technology, the HQ-2000B is widely used in food and beverage, edible oil, daily chemical, pharmaceutical and chemical industries. It can adapt to the production of various regular plastic bottles, meeting the diversified packaging needs of different industries and improving production line efficiency.The 1.5L semi automatic bottle blowing machine is ideal for small-batch production of 1.5L sample bottles, reducing the cost of trial production for new product packaging.
After-Sales Service
We provide comprehensive after-sales support for the HQ-2000B 1.5L semi-automatic bottle blowing machine, covering on-site installation training, core component warranty, technical consultation and spare parts supply. A professional team responds quickly to solve your problems in equipment operation and maintenance, ensuring the long-term stable operation of the production line.We provide free spare parts for the 1.5L semi automatic bottle blowing machine within the warranty period, and can deliver replacement parts to your factory within 72 hours in emergency situations.
FAQ About HQ-2000B 1.5L Semi-Automatic Bottle Blowing Machine
Q：What is the production efficiency of the HQ-2000B for small-capacity bottles below 1.5L?
A：The HQ-2000B has a stable output of 2200 bottles per hour for 1.5L bottles. For smaller capacity bottles (such as 500ml or 1L), the production efficiency can be appropriately improved, which is suitable for mass production of small-capacity packaging.
Q：How does the automatic loading & ejection system of the HQ-2000B improve production efficiency?A：The automatic preform lifter realizes unmanned conveying of preforms, and the automatic ejection system collects finished bottles in time, eliminating manual loading and unloading links. This not only saves 1-2 labor costs per shift but also avoids production delays caused by manual operation, greatly improving overall efficiency.
Q：Can the HQ-2000B be connected to existing conveyor belt systems in the workshop?
A：Yes, the HQ-2000B is designed with a standard interface, which can be perfectly connected to most conventional conveyor belt systems. It realizes seamless connection between bottle blowing and subsequent packaging processes, reducing secondary contamination and manual handling.
Q：Is the HQ-2000B suitable for enterprises with no professional technical operators?
A：Absolutely. The HQ-2000B adopts a simple operation interface with clear process prompts and intuitive parameter setting. Ordinary workers can master the basic operation skills after 1-2 days of training, without the need for professional technical personnel to operate.
Q：What after-sales services are provided for the HQ-2000B?
A：We provide global after-sales services including free on-site installation training, 1-year warranty for core components, permanent technical support, and fast supply of spare parts. If you encounter any problems during use, our technical team will respond within 24 hours to provide solutions.
